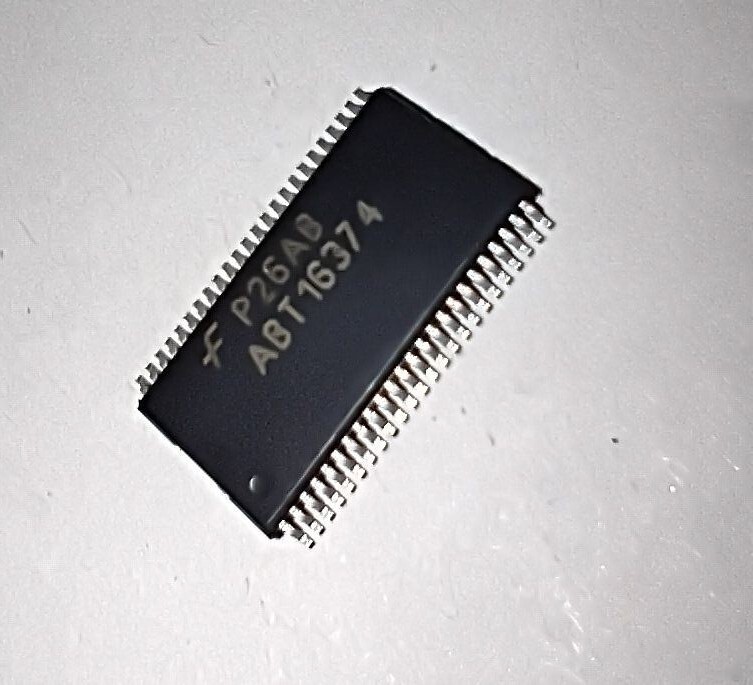

2pcs. 74ABT16374 16-Bit D-Type Flip-Flop and 50 similar items

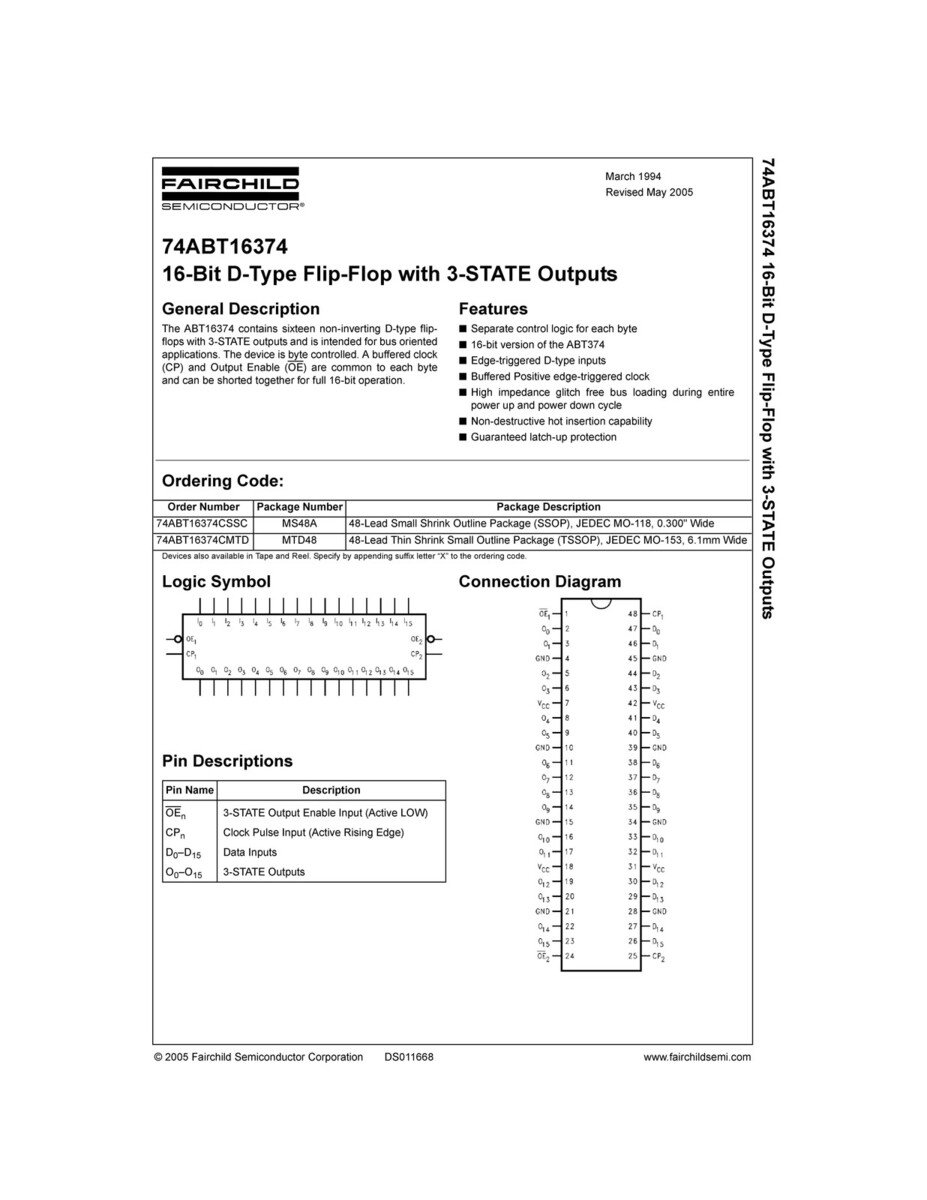

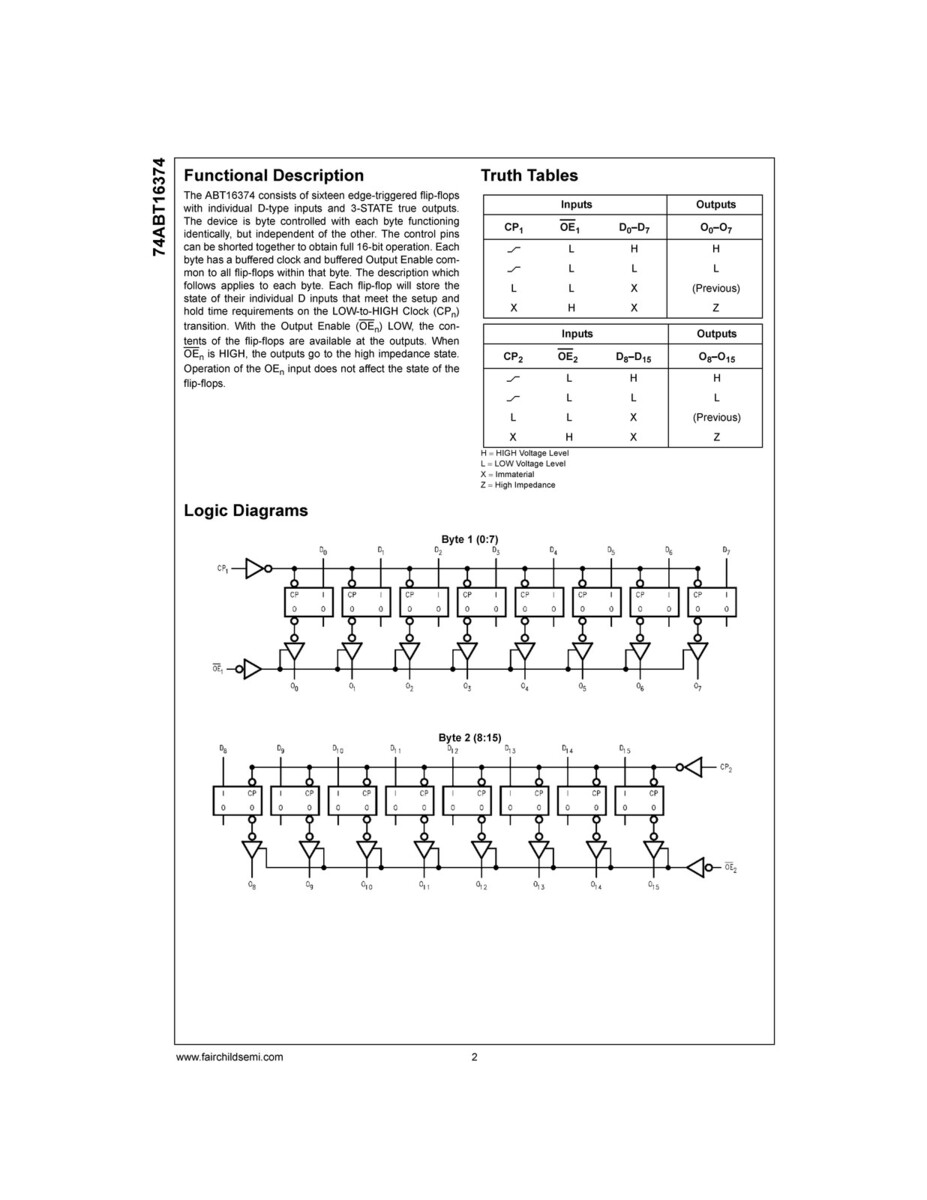

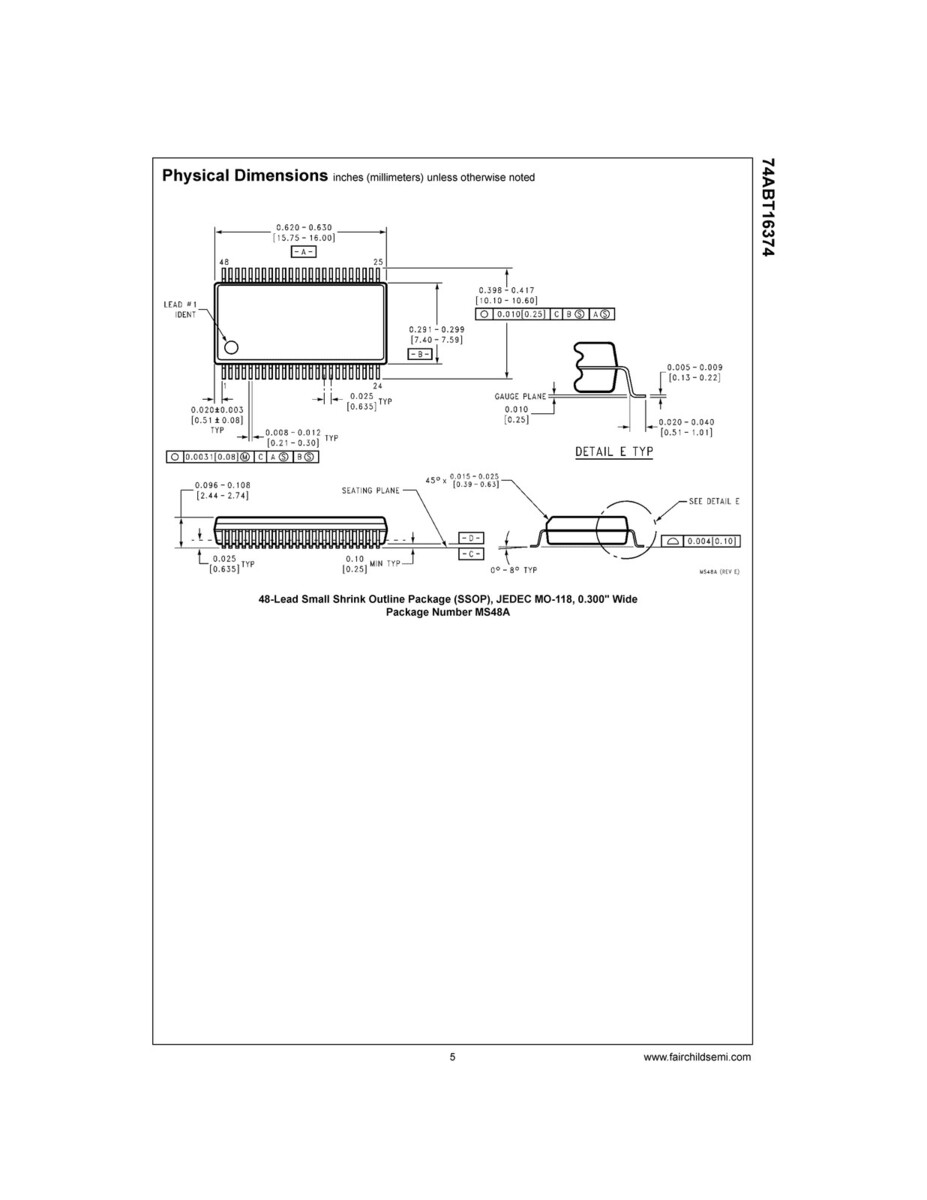

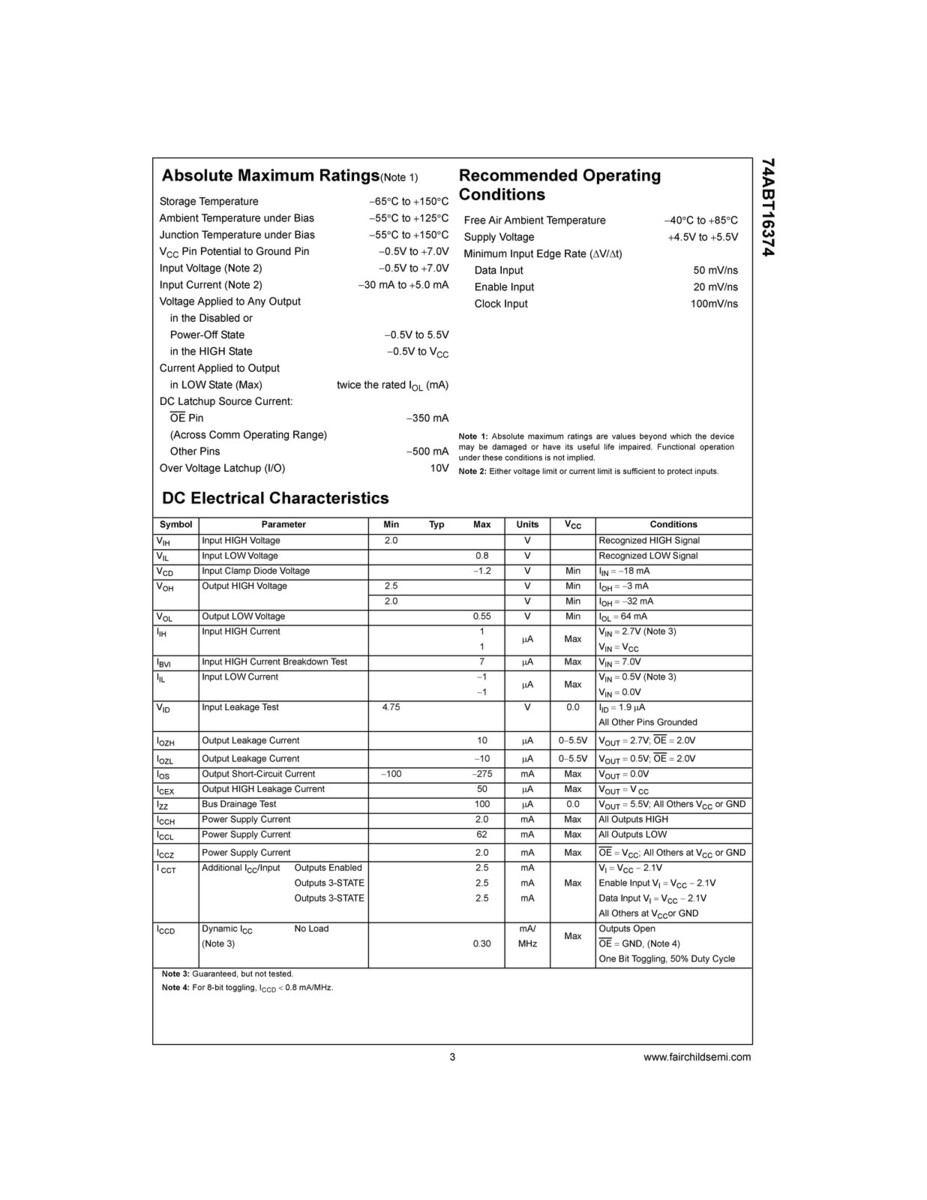

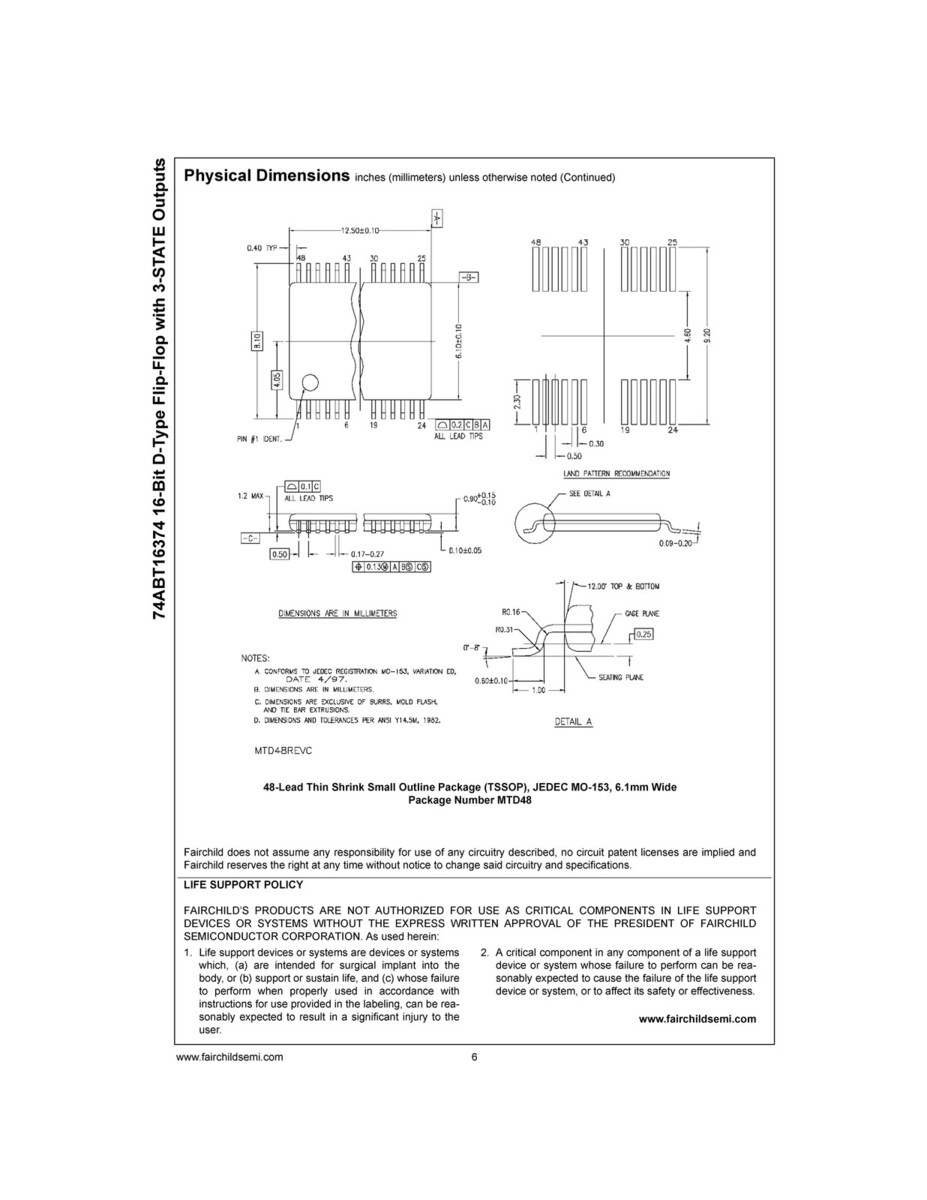

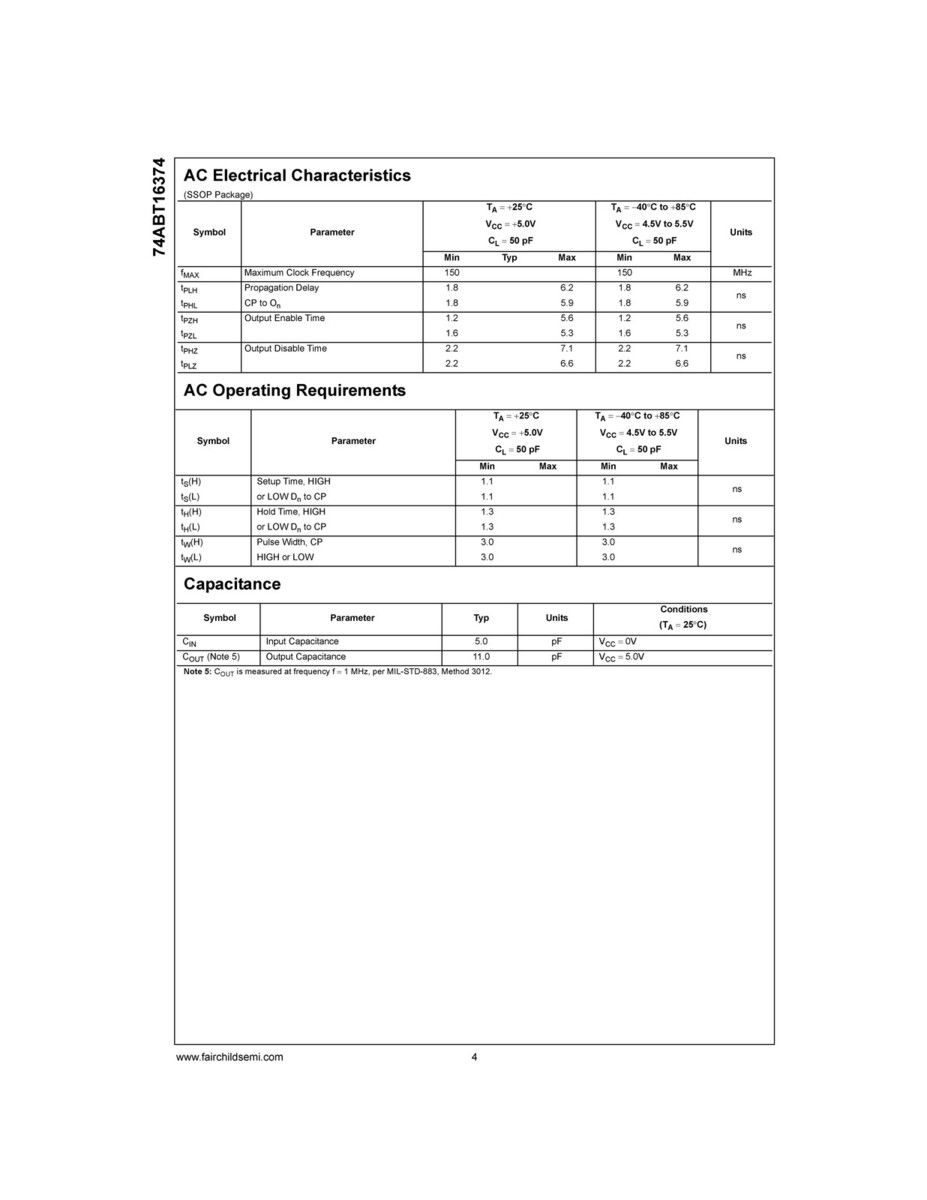

The ABT16374 contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation. Features ? Separate control logic for each byte ? 16-bit version of the ABT374 ? Edge-triggered D-type inputs ? Buffered Positive edge-triggered clock ? High impedance glitch free bus loading during entire power up and power down cycle ? Non-destructive hot insertion capability ? Guaranteed latch-up protection Functional Description The ABT16374 consists of sixteen edge-triggered flip-flops with individual D-type inputs and 3-STATE true outputs. The device is byte controlled with each byte functioning identically, but independent of the other. The control pins can be shorted together to obtain full 16-bit operation. Each byte has a buffered clock and buffered Output Enable common to all flip-flops within that byte. The description which follows applies to each byte. Each flip-flop will store the state of their individual D inputs that meet the setup and hold time requirements on the LOW-to-HIGH Clock (CP/) transition. With the Output Enable (OE/) LOW, the contents of the flip-flops are available at the outputs. When OEn is HIGH, the outputs go to the high impedance state. Operation of the OE/ input does not affect the state of the flip-flops. For other info see the datasheet
