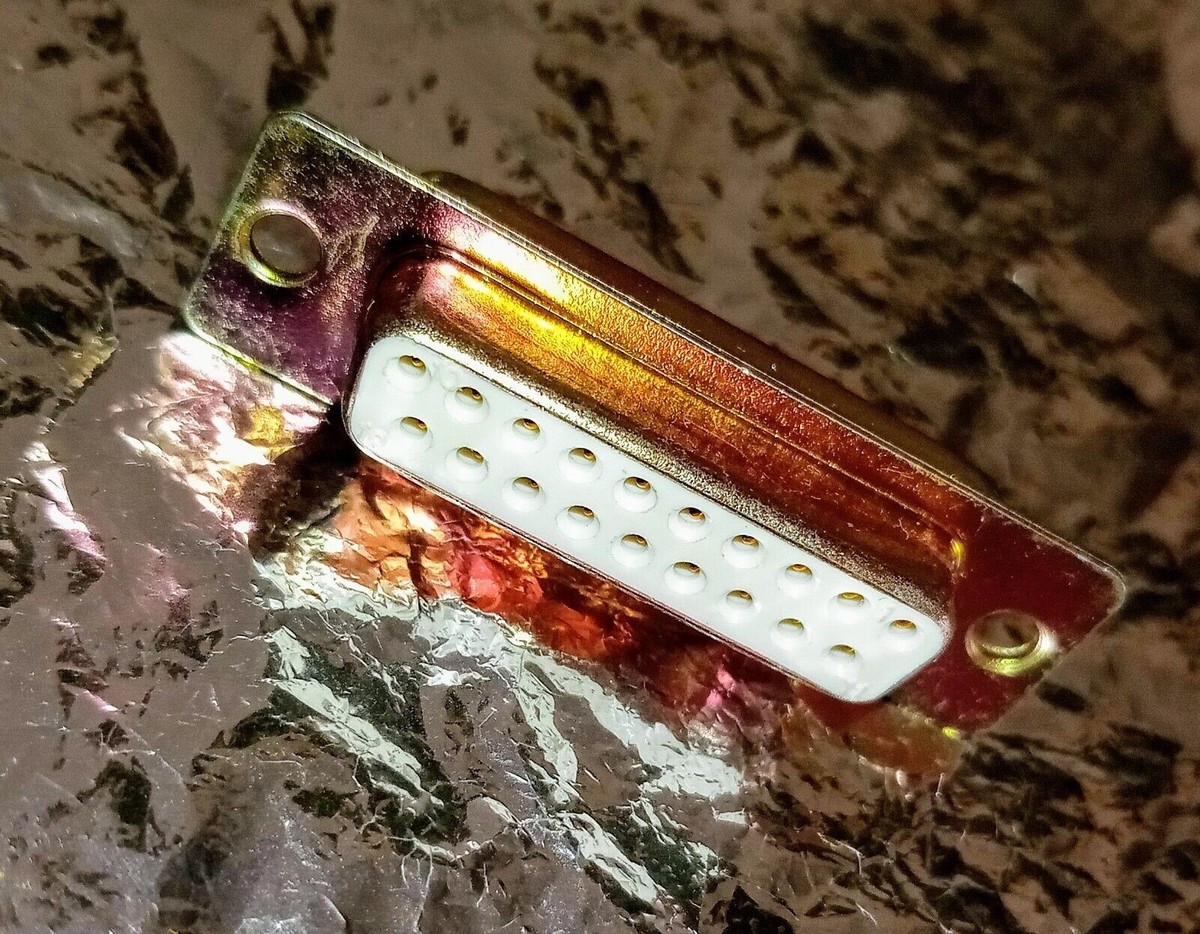

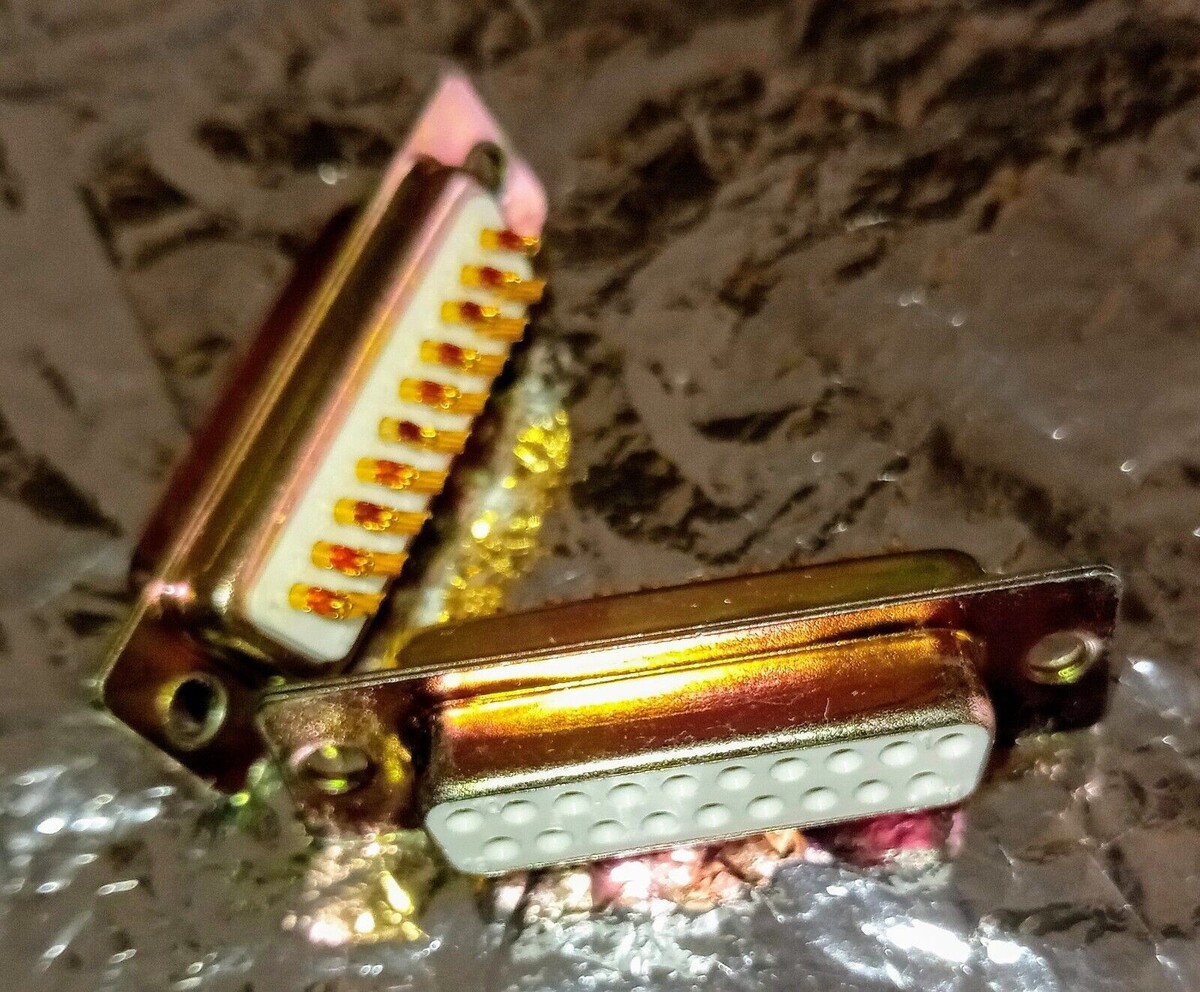

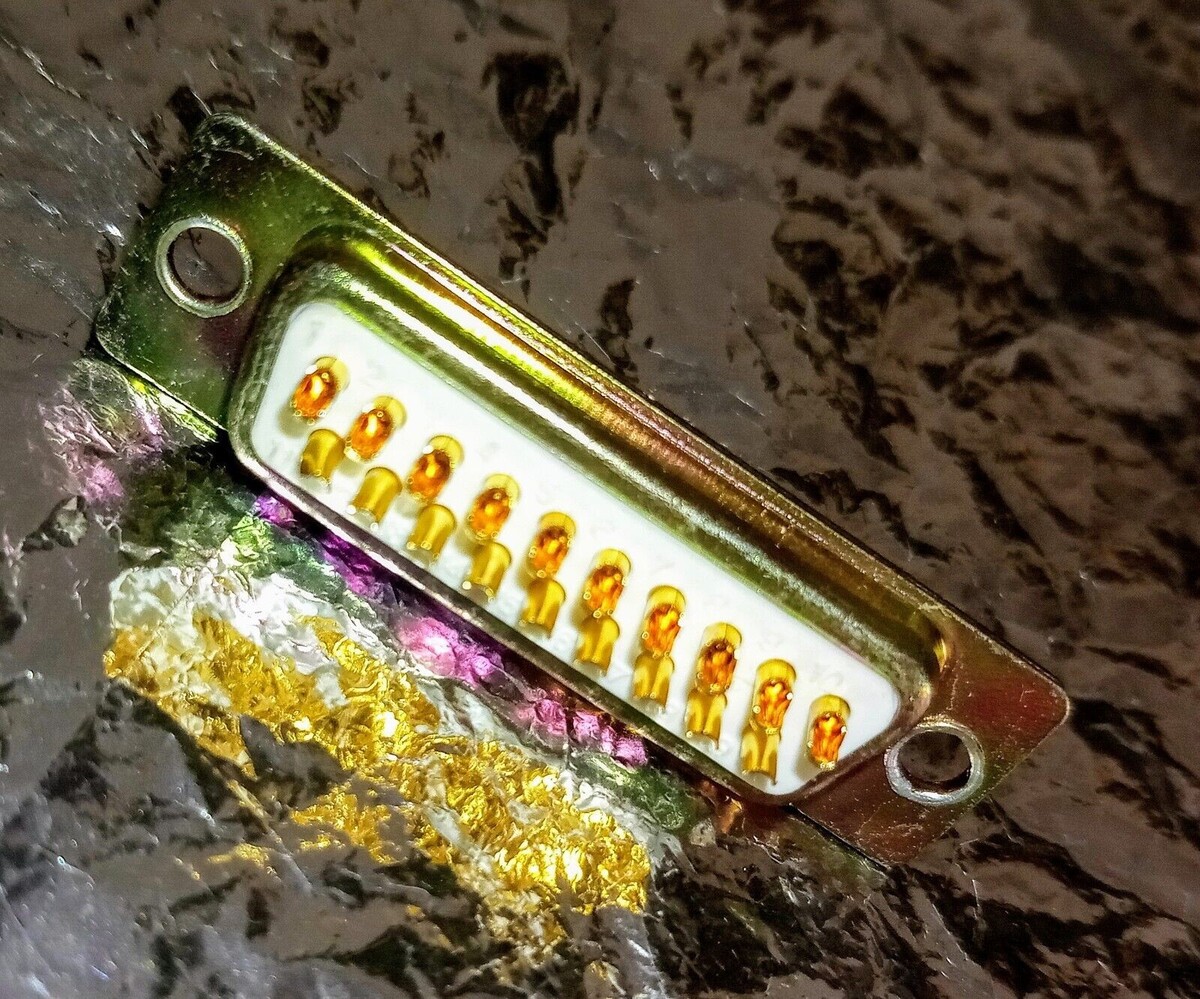

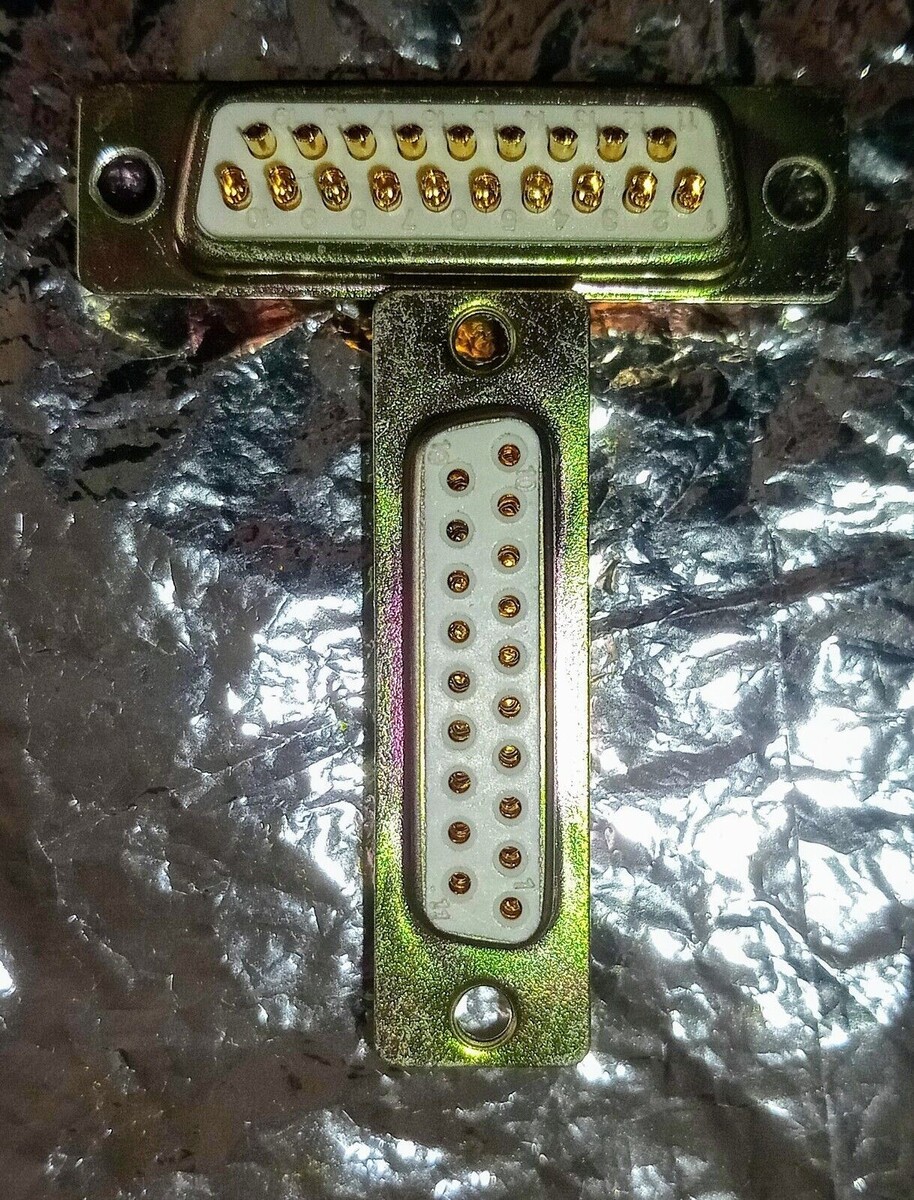

THE AMY FAMILY AMYOPTYMOUSE - A 400-dpi Amiga Optical Mouse for Precision and Performance AMYUSB2SERIAL - An Amiga USB Serial Adapter AMYA500Z2 - An Amiga 500 (and Plus) Zorro II Expansion Adapter AMY501 - A 512kB Memory Expansion - A501 Replacement AMY501 PLUS 'K' - An Amiga 500 Plus and Classic 512k 1MB RAM Expansion AMYA600LED - A RGB Programmable Commodore Amiga 600 3x LED Replacement A600 PCB AMYAKABAT - An upgrade of a Ni-Cd Battery to a Leak-Free CR2032 Lithium AMYATX ALL-IN-ONE - The Ultimate ATX Power Supply Converter for Reviving Amiga Computers AMYATXA2000 Plus - ATX Power Adapter for Amiga 1500 and 2000 AMYATXA500 - An ATX PC power adapter for the Amiga 500 600 1200 AMYVIDHYBRID+ A Modern Replacement for Commodore 390229-03 Amiga Video Hybrid RGB DAC AMYVIDHYBRID+FBAS - A Modern Replacement for Commodore 390229-03 Amiga Video Hybrid RGB DAC PAL NTSC Converter AMYRGB2SCART - RGB cable for Commodore Amiga D-SUB 19-Pin Female DB19 Solder Connector Apple ? Atari TT/Falcon ? NeXT ? Macintosh Compatible (New Old Stock) SKU: DB19-F-SOLDER ? Price reference: ~?4.50?9.99 (NOS stock, subject to availability) OUR PRICE IS THE LOWEST IN THE WORLD! Genuine DB19 female solder-cup connector (New Old Stock). Shown above: typical metal shell with 19 precision solder pins. Extremely rare ? production of DB19 connectors ceased decades ago. These are authentic surplus parts. Product Overview Genuine DB19 female D-sub 19-pin solder socket/connector. This hard-to-find connector was originally used in several iconic 1980s?1990s vintage computers and peripherals. It is the exact part needed for repairing or building custom cables for: Atari TT030 Falcon030 ? ACSI/DMA hard drive port and RGB SCART video cables Atari ST/STE series ? ACSI (Atari Computer System Interface) port Apple Macintosh (early 68k models) Apple IIc / II series ? external floppy disk drive port NeXT Computer / NeXTstation / NeXTCube ? monitor, laser printer, and peripheral cables Why these are special: DB19 connectors became ?unobtanium? after major manufacturers stopped production in the 1990s. New Old Stock (NOS) pieces like this one are the only reliable source today. They feature the correct D-shaped metal shell, solder-cup pins for easy cable assembly, and mounting holes for hoods. Key Specifications Connector Type D-Sub (DB) 19-pin Female Gender Female (socket) Connection Style Solder cup (ideal for hand-wiring cables) Shell Standard metal D-sub with mounting flanges Condition New Old Stock (NOS) ? never used, factory fresh Compatibility Atari TT/Falcon, Atari ST, Apple II/Mac, NeXT systems and others Example Pinout Reference (Atari ACSI / DMA Port) (Pinouts vary by system ? always verify your specific device wiring) Pin Signal (Atari ACSI) Pin Signal (Atari ACSI) 1 Data 0 11 Ground 2 Data 1 12 Reset 3 Data 2 13 Ground 4 Data 3 14 Acknowledge 5 Data 4 15 Ground 6 Data 5 16 A 7 Data 6 17 Ground 8 Data 7 18 Read/Write 9 Chip Select 19 Data Request 10 Interrupt Request (Apple floppy NeXT pinouts differ ? refer to system-specific diagrams) What?s Included 1 DB19 female solder-cup connector (New Old Stock) Perfect for: Custom SCART cables, ACSI hard-drive adapters, floppy drive repairs, NeXT monitor cables, or any retro restoration project requiring the original 19-pin D-sub.
