Pneumatic Air Flow Speed Control Valve Tube and 50 similar items

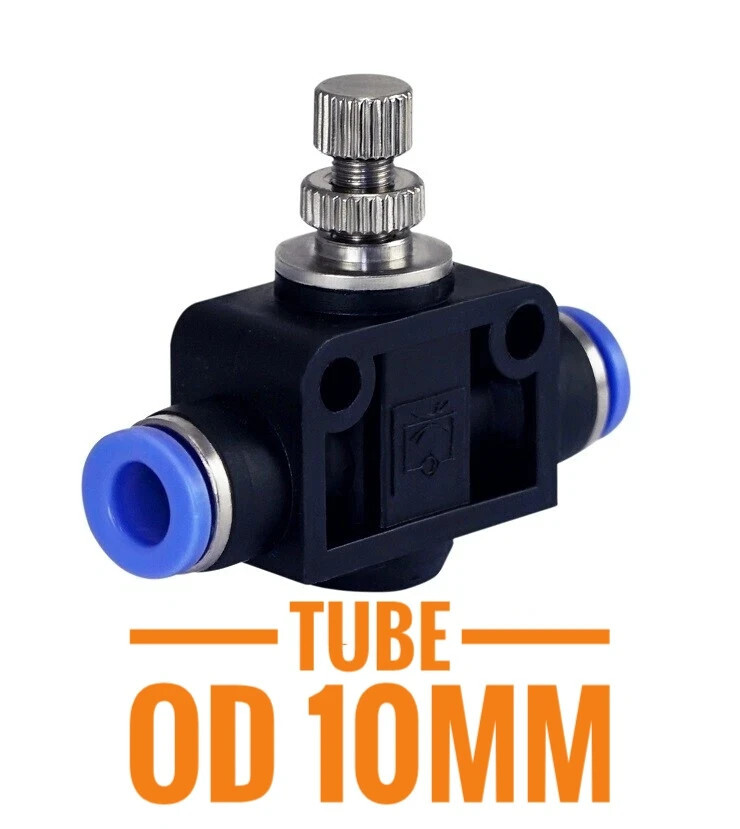

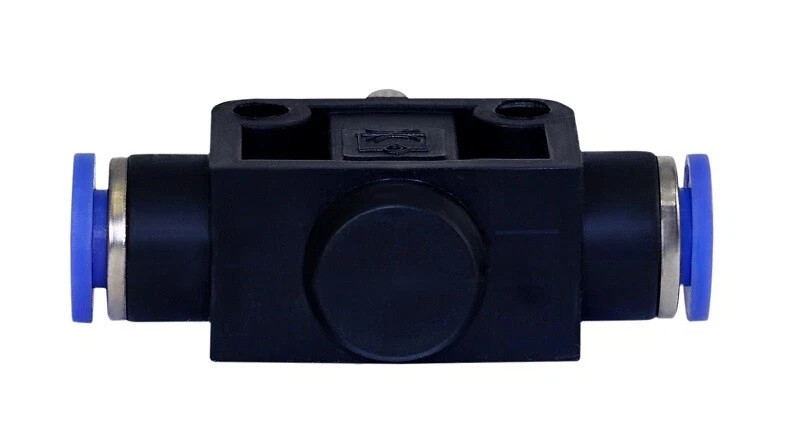

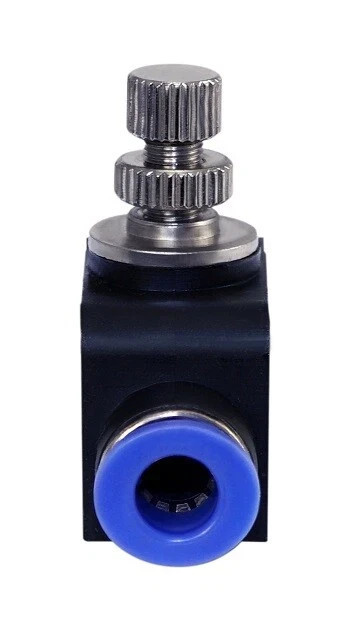

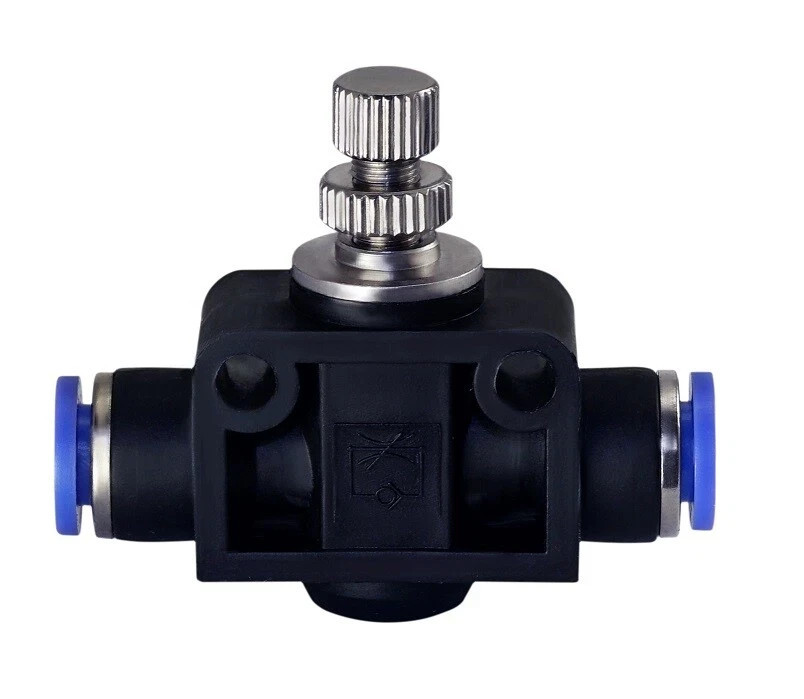

Pneumatic Air Flow Speed Control Valve Tube OD 10mm, Push In Fitting, 1 Pcs This product data sheet is originally written in English. Pneumatic Air Flow Speed Control Valve Tube OD 10mm, Push In Fitting, 1 Pcs Features Details Air Flow Speed Control Valve Tube OD 10mm Push In Fitting Qty. 1 Pcs NSF Series composite air speed control valve connector one touch quick release push in to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. NSF Series air speed controller fitting can be completely rotate of the valve body around the bolt for a desirable tubing direction. Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. Yet the special adjustment needle design provides a high precision air flow adjustment. The strong nickel-plated brass threaded bodies ensure anti-corrosion. Threaded fittings come with pre-coated Telfon sealant for quick installation with no additional sealing needed. NSF Series Angle Air Flow Control Valve Specifications Model Number: NSF-T8 Operating Pressure: 0 - 150 PSI / 0 - 990 kpa Vacuum: 0 - 29.5 in Hg / 750 mm Hg Operating Temperature: 0 - 60 C / 32 to 140F Elbows: Swivel (Rotate 360) Application: Air Recommended Tubing Material: Polyurethane, Nylon, Polyethylene, Polypropylene. Material of Construction: Plastic Body: PBT (Polybutylene terephthalate) Metal Body: Nickel Plated Brass Release Button: POM (Poly oxy methylene copolymer) Grip Ring: Stainless Steel Thread Sealant: Teflon O-Ring: NBR (Buna-N) Package Include: Pneumatic Air Flow Speed Control Valve Tube OD 10mm, Push In Fitting, 1 Pcs NSF Series composite air speed control valve connector one touch quick release push in to connect fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required. NSF Series air speed controller fitting can be completely rotate of the valve body around the bolt for a desirable tubing direction. Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. Yet the special adjustment needle design provides a high precision air flow adjustment. The strong nickel-plated brass threaded bodies ensure anti-corrosion. Threaded fittings come with pre-coated Telfon sealant for quick installation with no additional sealing needed. Recommended Tubing Material: Polyuretha
