220V 1PH Waste Oil Heater Furnace Air and similar items

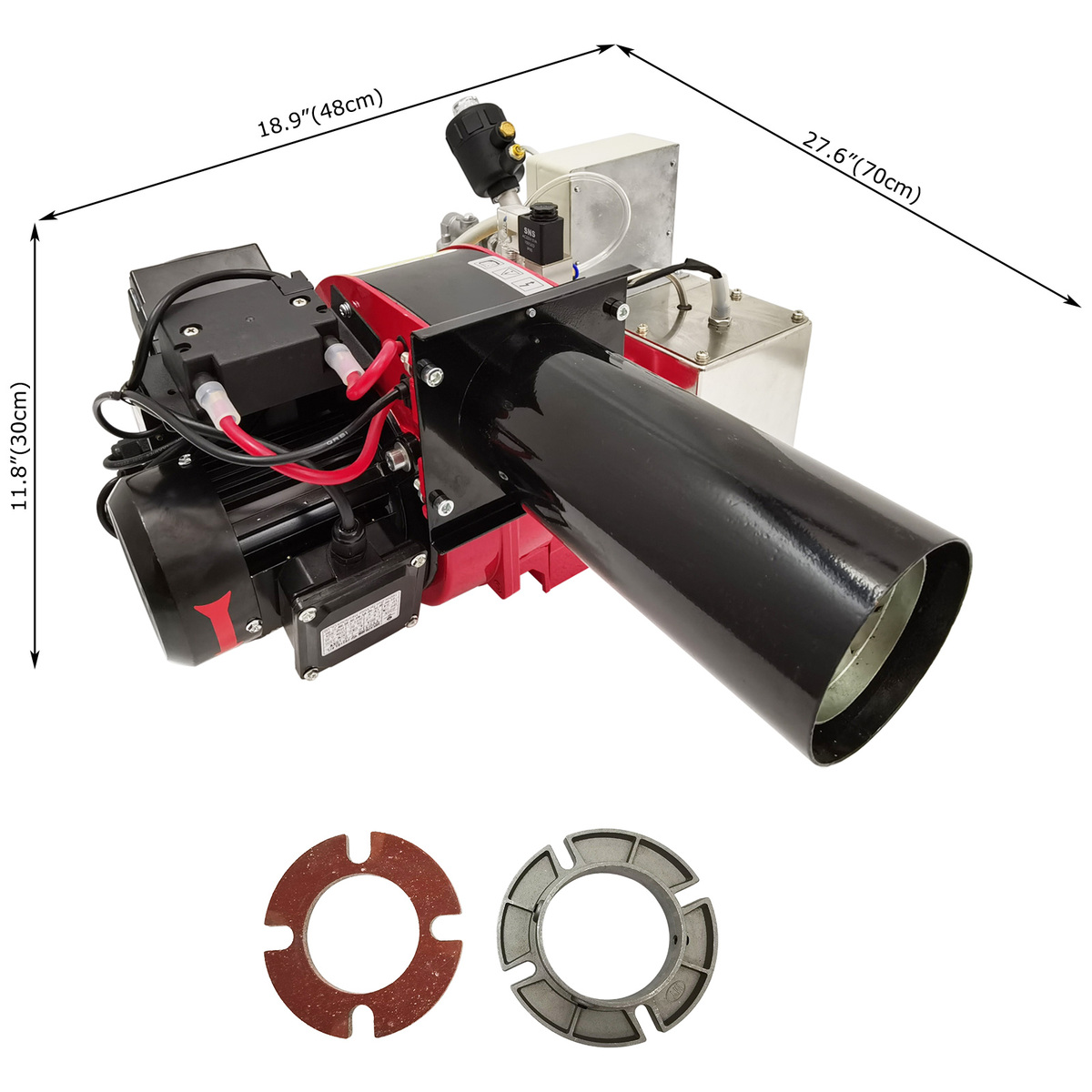

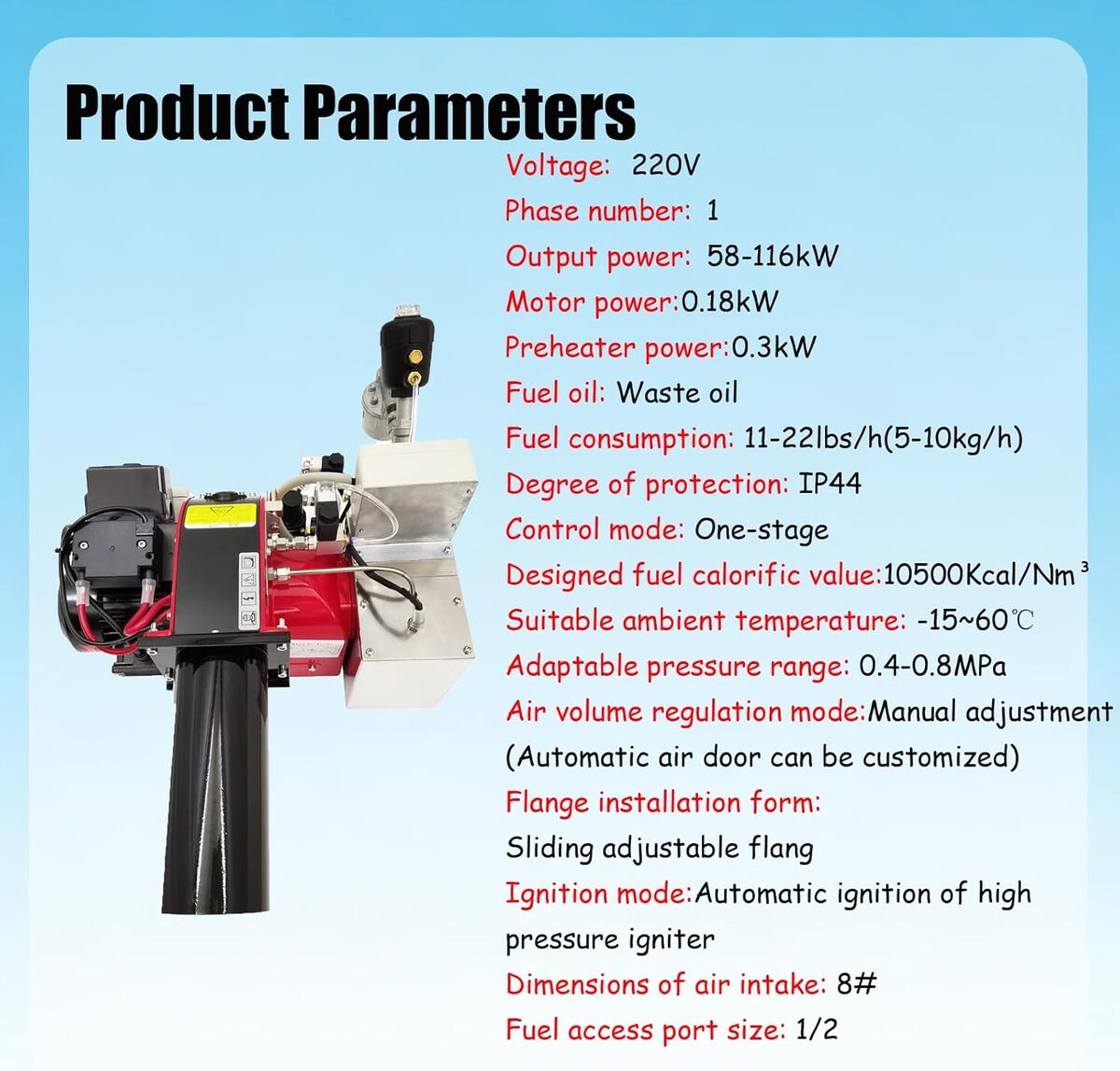

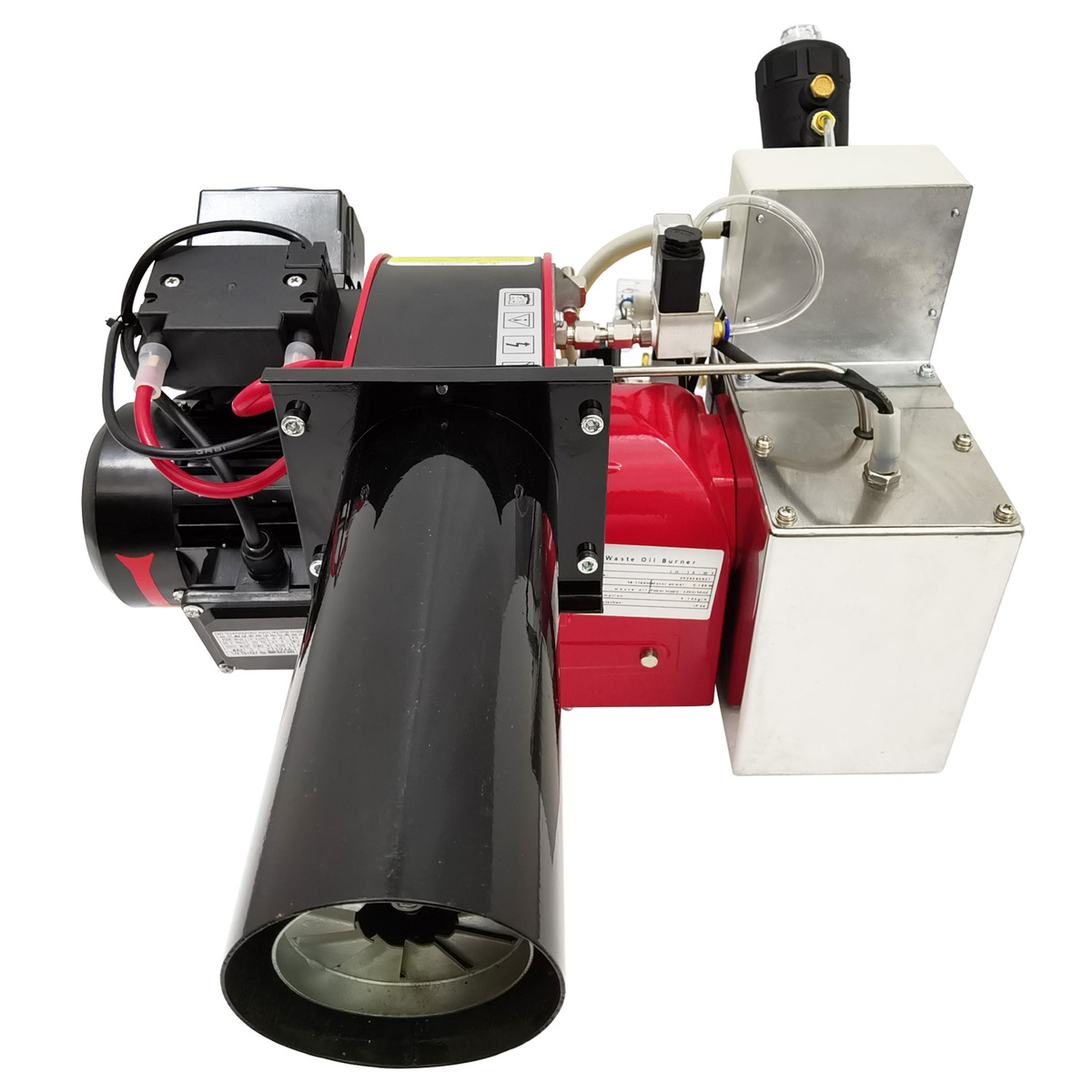

? 220V 1PH Waste Oil Heater Furnace Air Atomizing Heavy Oil Burner Single Section Fire Product Overview The waste oil burner is suitable for oil-fired boilers, industrial boilers, hot water boilers, steam boilers, food machinery, painting equipment, textile machinery, ceramic equipment and other thermal energy burning equipment, with a very wide range of application. The product is simple to operate, automatic ignition temperature control; Safe and reliable operation, low failure rate, uniform heating; High combustion efficiency, lower energy consumption, more atomization! Product Parameters Voltage: 220V Phase number: 1 Output power: 58-116kW Motor power: 0.18kW Preheater power: 0.3kW Fuel oil: Waste oil Fuel consumption: 11-22lbs/h(5-10kg/h) Degree of protection: IP44 Control mode: One-stage Designed fuel calorific value: 10500Kcal/Nm Suitable ambient temperature: -15~60? Adaptable pressure range: 0.4-0.8MPa Air volume regulation mode: Manual adjustment(Automatic air door can be customized) Flange installation form: Sliding adjustable flang Ignition mode: Automatic ignition of high pressure igniter Dimensions of air intake: 8# Fuel access port size: 1/2 Package size: 22.4"*20.5"*13.8" (57cm*52cm*35cm) Net weight/Gross weight: 30.2lbs(13.7kg)/35.3lbs(16kg) Product Features Advantages 1. Fire Cylinder: Selected high-quality filter, long service life; The oil nozzle is not easy to plug, the atomization is more full and uniform, the effect is good, and the combustion rate can be improved. 2. Premium Quality: The function of the filter is to filter out the impurities in the oil, to ensure the cleanliness of the oil; The control inlet valve can control the inflow of fuel to ensure the continuous supply of fuel during combustion. 3. Temperature Adjustment: The temperature can be adjusted, and the appropriate temperature can be selected according to different materials, reducing energy consumption, adjusting at any time, and more flexible. 4. Considerate Details: When the fuel in the tank is below the minimum level, the solenoid valve will open the control oil inlet valve and replenish the fuel! When the fuel in the tank reaches the highest oil level, cut off the oil; The air pressure regulating valve can adjust the pressure of compressed air into the burner. 5. Motor: 100% Pure copper core motor, strong power, high efficiency, fast burning speed, low noise, long service life. - High combustion efficiency, fuel saving, reduce energy consumption, small environmental pollution. - Burning methanol, light oil, oil with large viscosity, etc., does not have high requirements for oil products. - High heating temperature; Simple operation, automatic ignition, temperature control, no manual. - Safe and reliable operation, low failure rate; Heating evenly to prevent local overheating; The furnace heating and material heating speed is fast, and the pressure in the furnace is uniform. - The use of the nozzle is not easy to plug, atomization more fully! - Applicable to oil boiler, industrial boiler, hot water furnace, steam boiler; Food machinery (such as hot air rotary furnace), painting equipment (such as paint baking equipment, paint removal furnace), textile machinery (such as singeing machine, ironing equipment); Road construction machinery; Industrial furnaces, ceramic equipment and other thermal energy burning equipment, the scope of application is very wide. Product Presentation Details Item Included(056987) Waste oil burner *1 Francois *1 Flange gasket *1 You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
