10PCS 3362P-1-103LF Bourns Single Turn and similar items

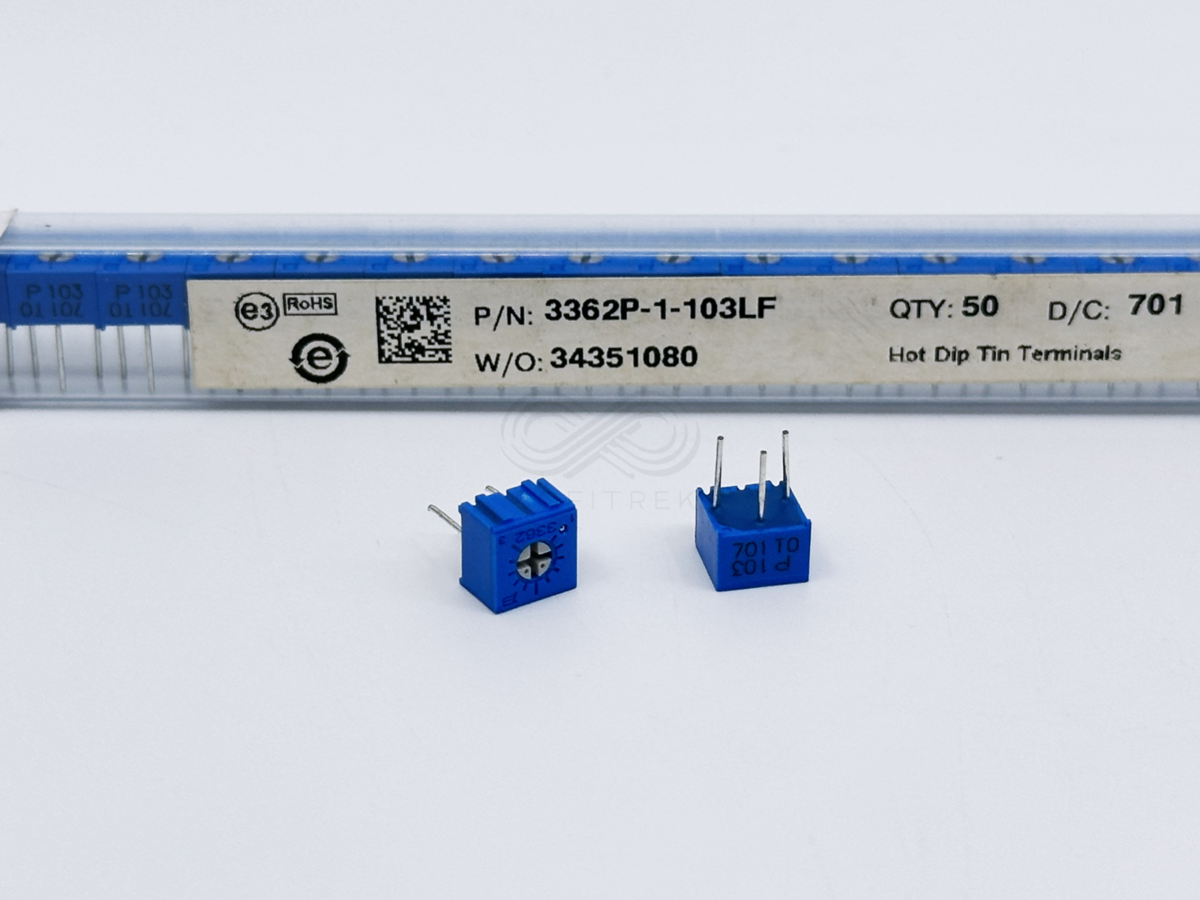

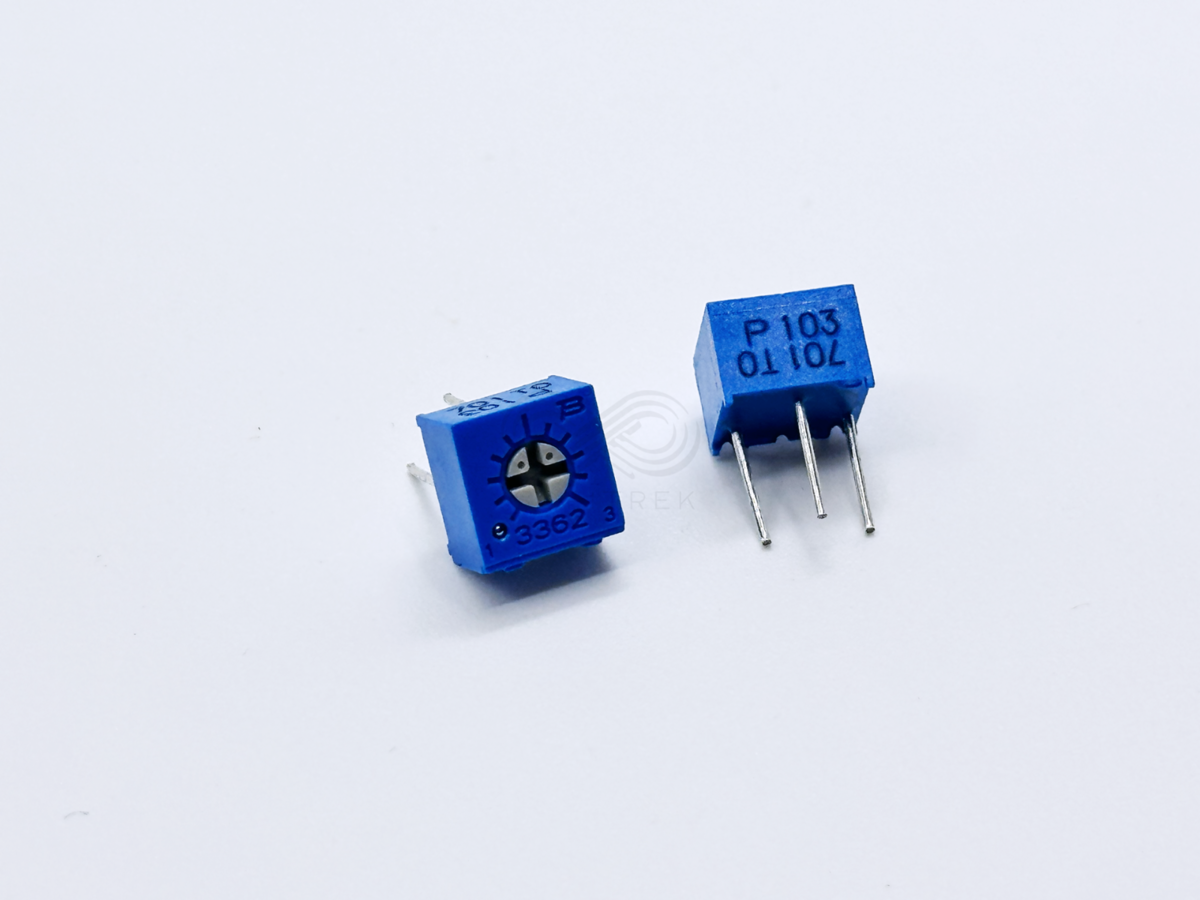

Store Seller Profile Feedbacks Contact Potentiometers Trimmers Trimmer Potentiometers Through Hole Trimmer Resistors close 10X 3362P-1-103LF Bourns Single Turn Cermet Trimmer Potentiometer 10K ohm Top Adjust 0.5W TRIMMER-3 Ready to Ship Ask a Question 30-Day Return Description Specifications Shipping Returns Disclaimer 10 Pieces - 3362P-1-103LF Bourns Single Turn Cermet Trimmer Potentiometer 10K ohm Top Adjust 0.5W TRIMMER-3 Specification Resistance 10 k? Tolerance 10 % Rated Power Dissipation (P) 500 mW Mounting Feature THROUGH HOLE MOUNT Temperature Coefficient 100 ppm/C Resistance Law LINEAR Resistor Type TRIMMER Technology CERMET Actuator Type SCREW Rated Temperature 70 C Surface Mount NO Working Voltage 300 V Operating Temperature-Max 125 C Operating Temperature-Min -55 C Actuator Orientation VERTICAL Construction Rectangular Ganging Number 1 Number of Terminals 3 Number of Turns 1 Package Shape RECTANGULAR PACKAGE Packing Method Tube Rotational Angle 240 deg Terminal Finish MATTE TIN Terminal Shape WIRE Lead Diameter 460 µm Lead Length 5.46 mm Package Height 4.88 mm Package Length 6.99 mm Package Width 6.6 mm Total Weight 332.5 CO2 1542.8 Compliance Temperature Grade Military: -55C to +125C EU RoHS Version RoHS 2 (2015/863/EU) CAS Accounted for Wt 94 CA Prop 65 Presence YES CA Prop 65 CAS Numbers 7440-02-0, 1309-64-4, 13463-67-7 Note: This table may not be entirely accurate and should only be used as a general reference. Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return window, no questions asked. Providing a reason helps us improve. Combined Shipping Purchasing multiple listings? We?ll automatically combine them and refund any excess postage? everything above the actual label cost plus $0?$1.5 packing cost for large orders. After checkout, send us a quick message as a reminder. Or add all items to your cart and click ?Request total?. If that button is missing (common with promotions or volume pricing), just pay normally; we?ll handle the refund during fulfilment. Sofitrek Product Disclaimer 1. Nature of Goods All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes than those currently supplied by the original manufacturers or their authorized dealers. 2. Non-Affiliation Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Sofitrek does not represent manufacturers in any capacity. 3. Exclusion of Manufacturer?s Warranty Because Sofitrek is not an authorized distributor, all original manufacturer warranties?express or implied?are excluded, including any implied warranties of merchantability, fitness for a particular purpose, or non-infringement. 4. Firmware Software Some products may include pre-installed firmware or software. Sofitrek does not guarantee the presence, compatibility, revision level, or suitability of such firmware or software for your application. You are solely responsible for obtaining, installing, and licensing any firmware or software from lawful sources. 5. Export Controls Sanctions Compliance The buyer is solely responsible for complying with all applicable U.S. and international export-control, sanctions, and embargo regulations (including EAR, ITAR, OFAC, and EU dual-use rules). Products may not be exported, re-exported, or transferred contrary to law. Buyer agrees to indemnify and hold harmless Sofitrek from any penalties, liabilities, or losses arising out of non-compliance. 6. Customs, Duties, Taxes Import Regulations For international shipments, title and risk of loss transfer to the buyer when the goods are handed to the carrier. The buyer is responsible for all customs clearance procedures, brokerage fees, import duties, VAT/GST, environmental fees, and ensuring compliance with local labeling, packaging, safety, and regulatory requirements (e.g., CE, UKCA, RoHS, REACH, WEEE, UL, CSA). Sofitrek assumes no liability for delays, seizures, fines, or additional costs arising from customs or regulatory matters. 7. No Critical-Application Use Products sold by Sofitrek are not authorized for use in life-support, implanted medical devices, aerospace flight controls, nuclear facilities, weapons systems, or any application where failure could reasonably be expected to result in personal injury, loss of life, or catastrophic property damage. Buyer assumes all risk and indemnifies Sofitrek for any claims arising from such use. 8. Limitation of Liability Sofitrek shall not be liable for any direct, indirect, incidental, consequential, special, or exemplary damages?including lost profits, business interruption, or loss of data?arising out of the purchase or use of any product. In no event shall Sofitrek?s cumulative liability exceed the purchase price paid for the specific product giving rise to the claim. 9. Force Majeure Sofitrek shall not be liable for any delay or failure to perform due to events beyond its reasonable control, including natural disasters, war, terrorism, labor disputes, supply-chain interruptions, pandemics, or governmental actions. 10. Compliance with End-User Agreements The buyer is solely responsible for complying with all terms of any End-User License Agreement (EULA) or similar documentation that may accompany or relate to the products. 11. Governing Law Jurisdiction This disclaimer and any sale by Sofitrek are governed by the laws of the State of California, U.S.A., without regard to conflict-of-laws rules. Any dispute shall be resolved exclusively in the state or federal courts located in Orange County, California, and buyer consents to personal jurisdiction there. 12. Severability If any provision of this disclaimer is found invalid or unenforceable, the remaining provisions shall remain in full force and effect. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to all terms of this disclaimer?including export-control and liability provisions?without limitation. Links Shop Feedbacks Contact Us Sofitrek
