110V 4 in 1 Electric Hydraulic Busbar and similar items

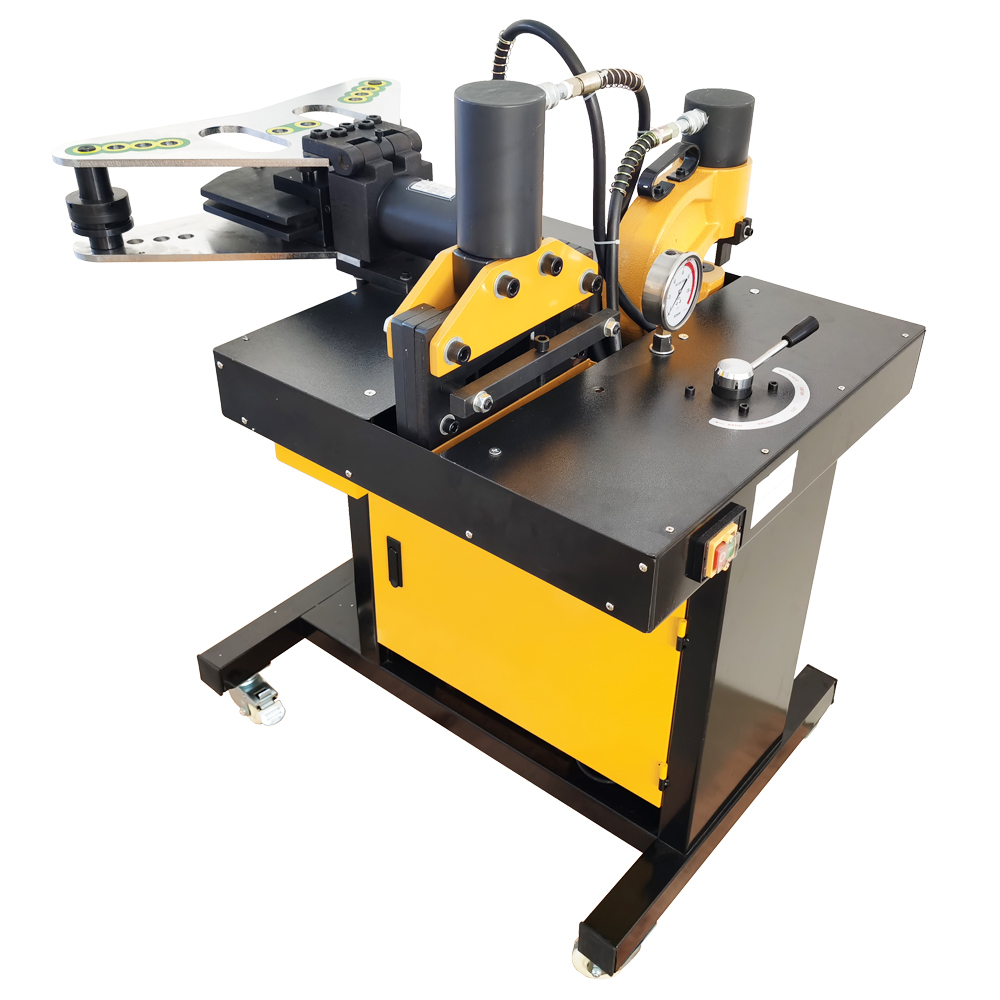

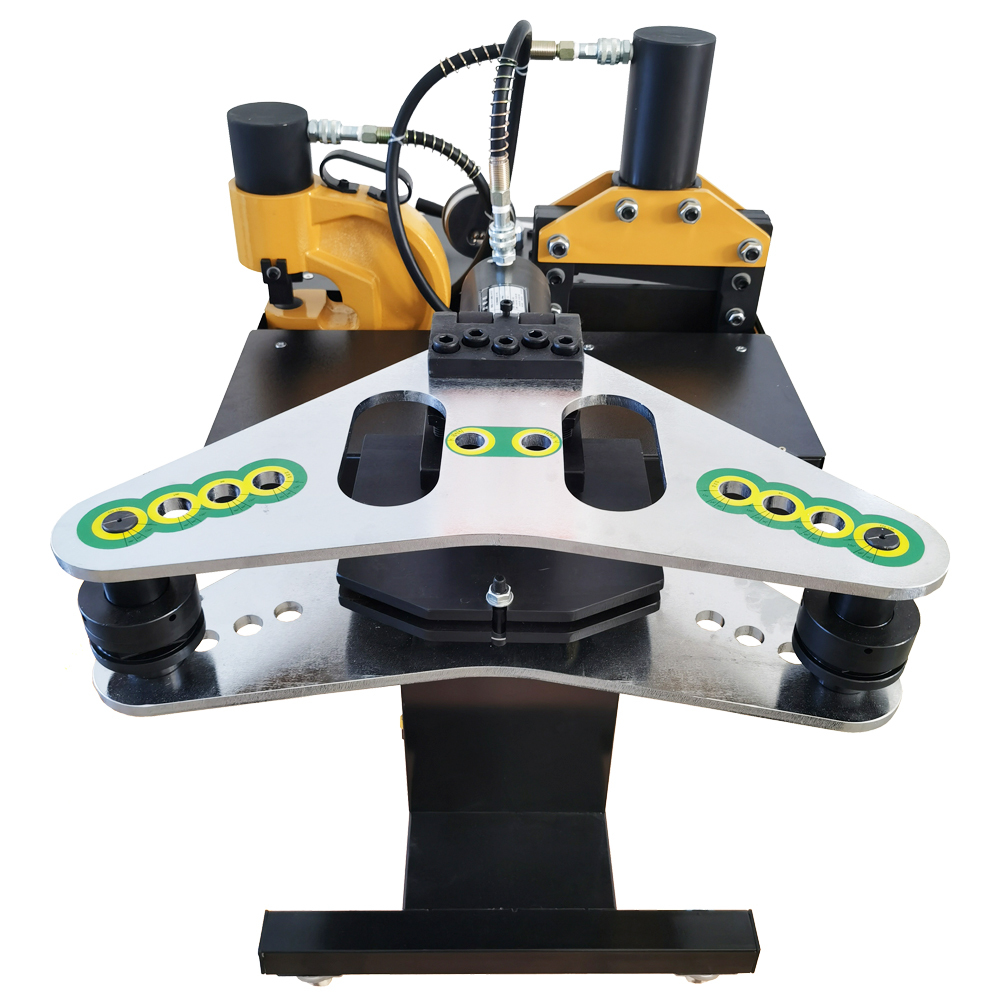

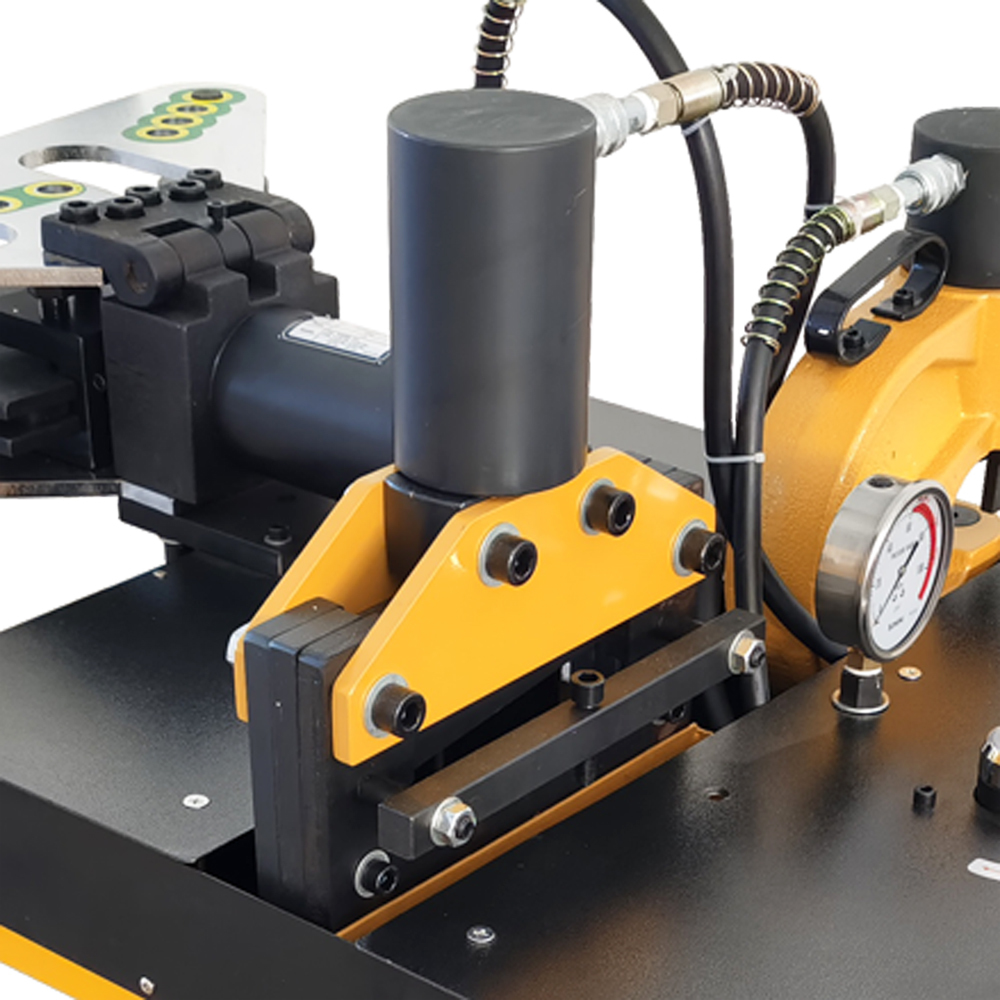

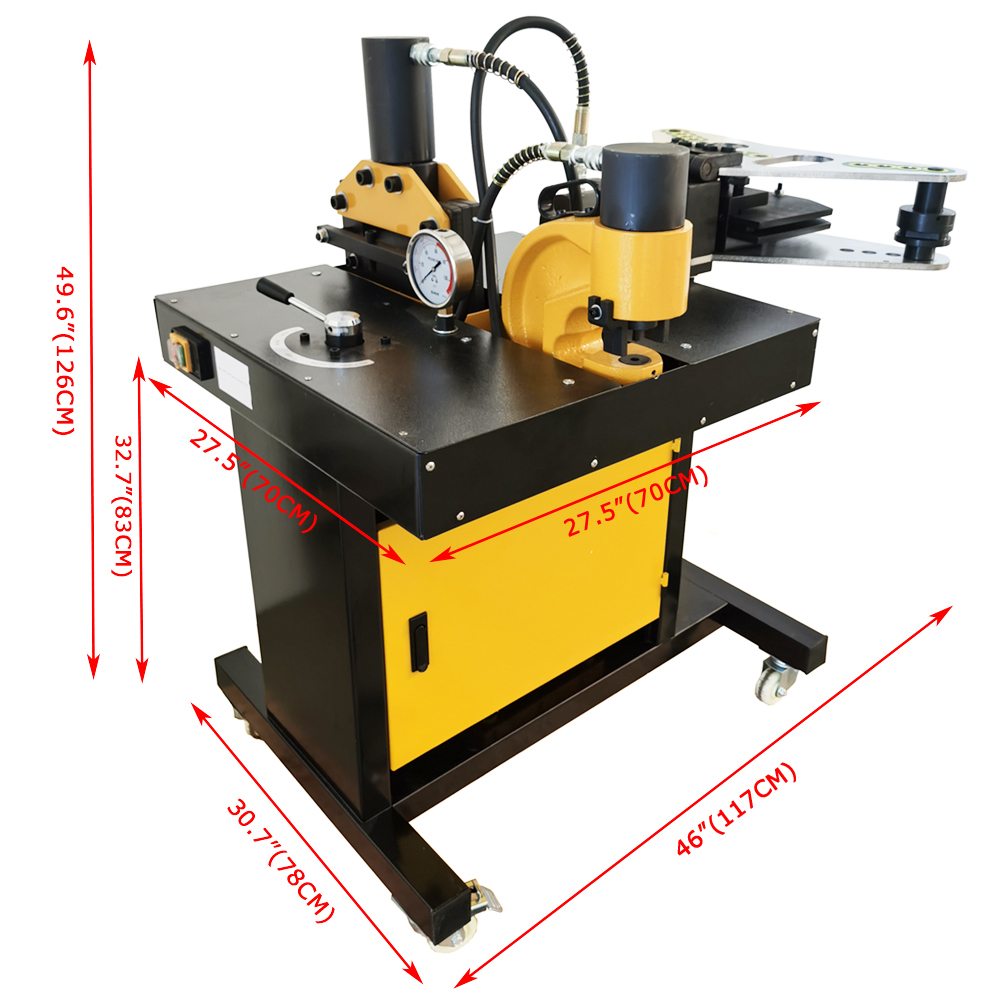

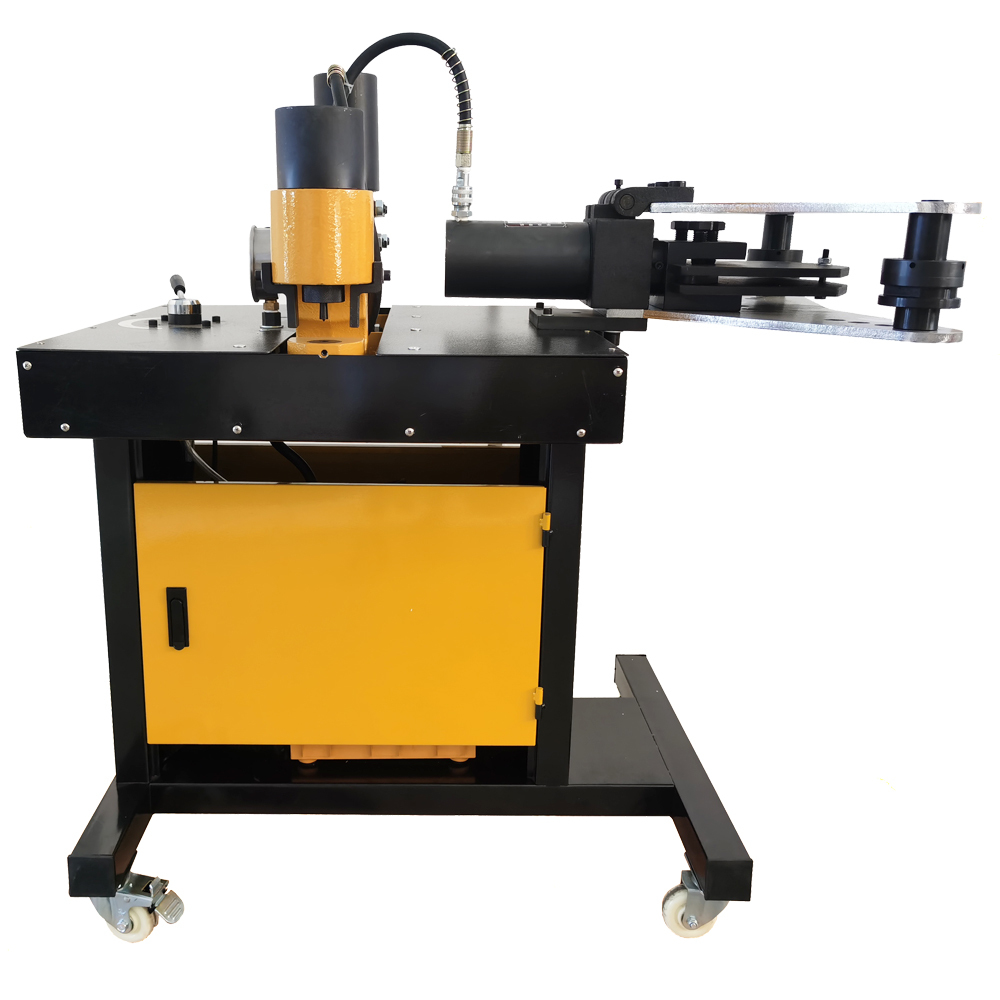

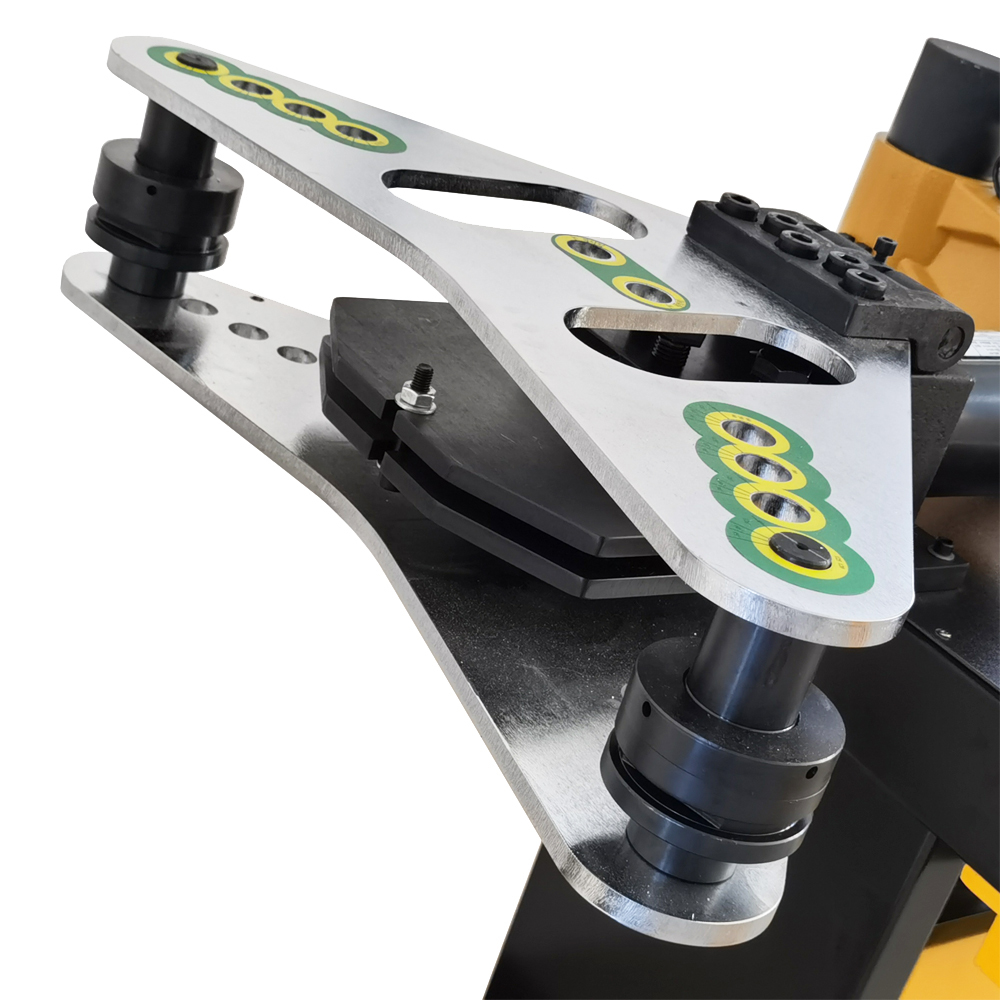

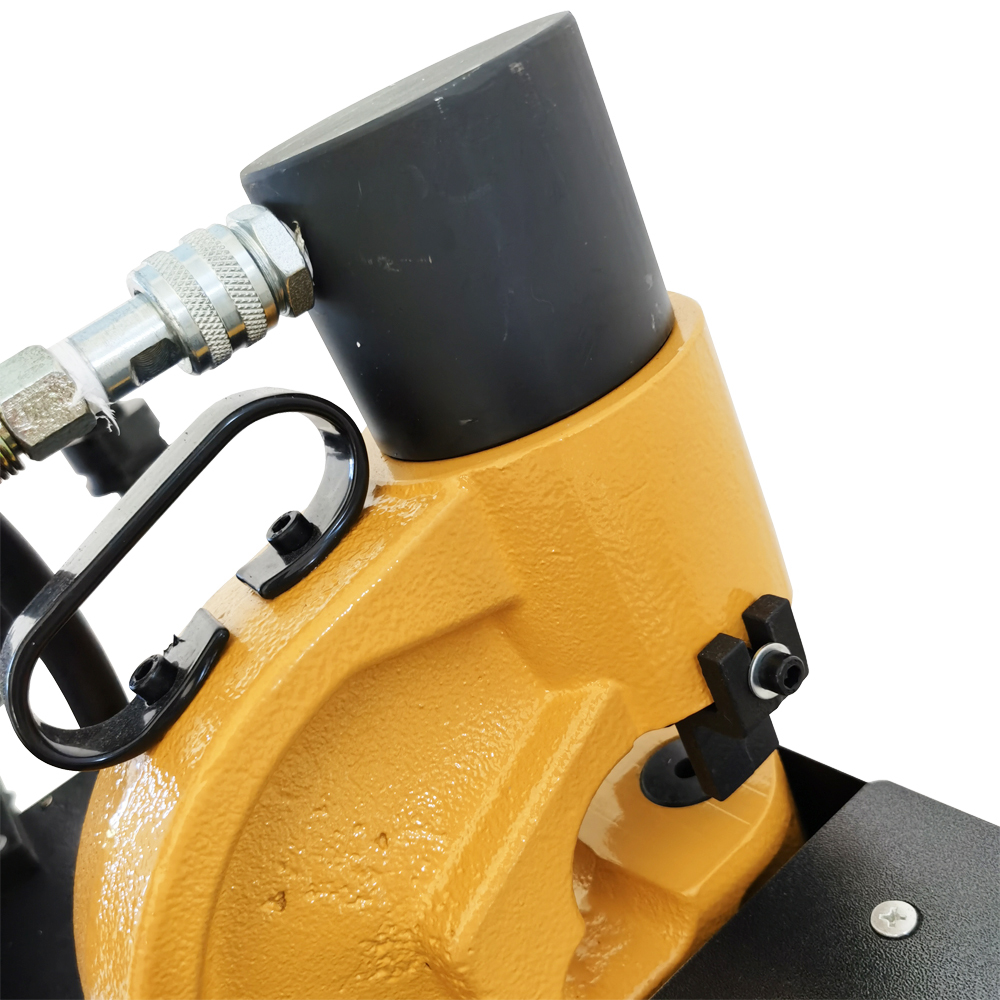

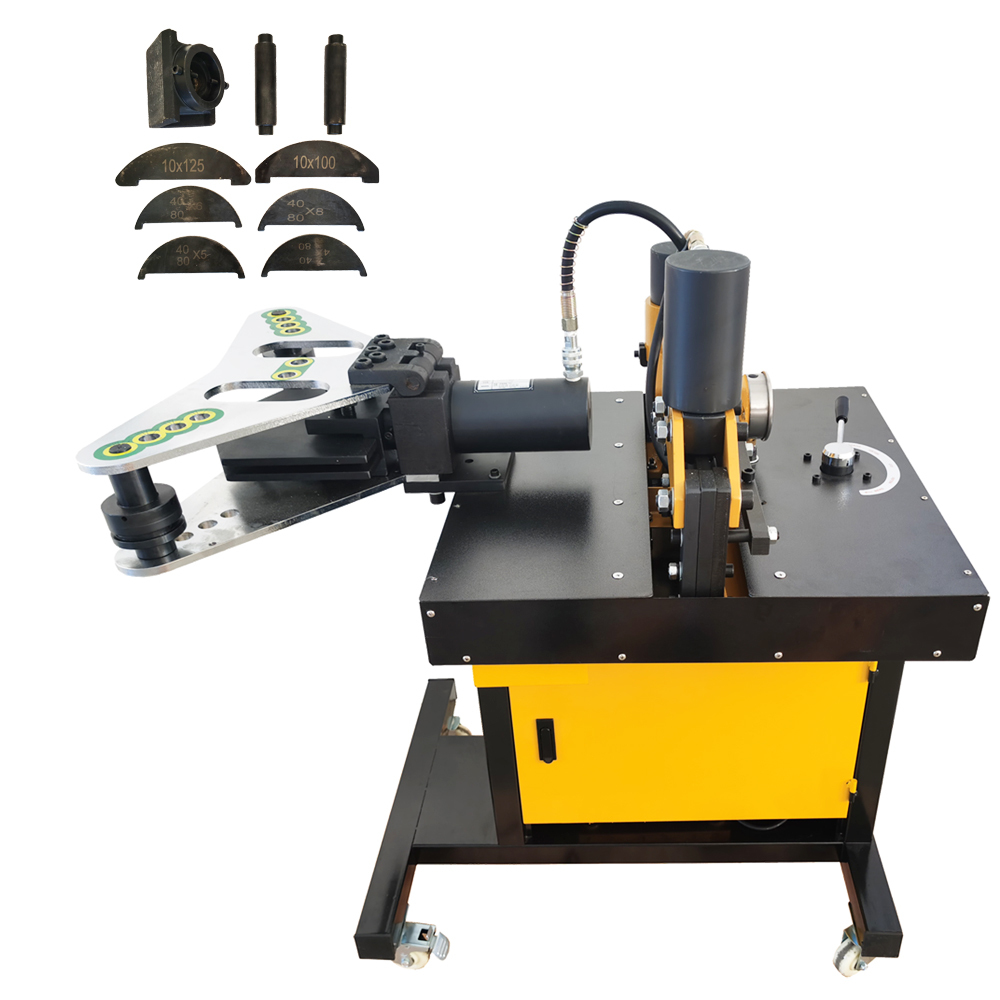

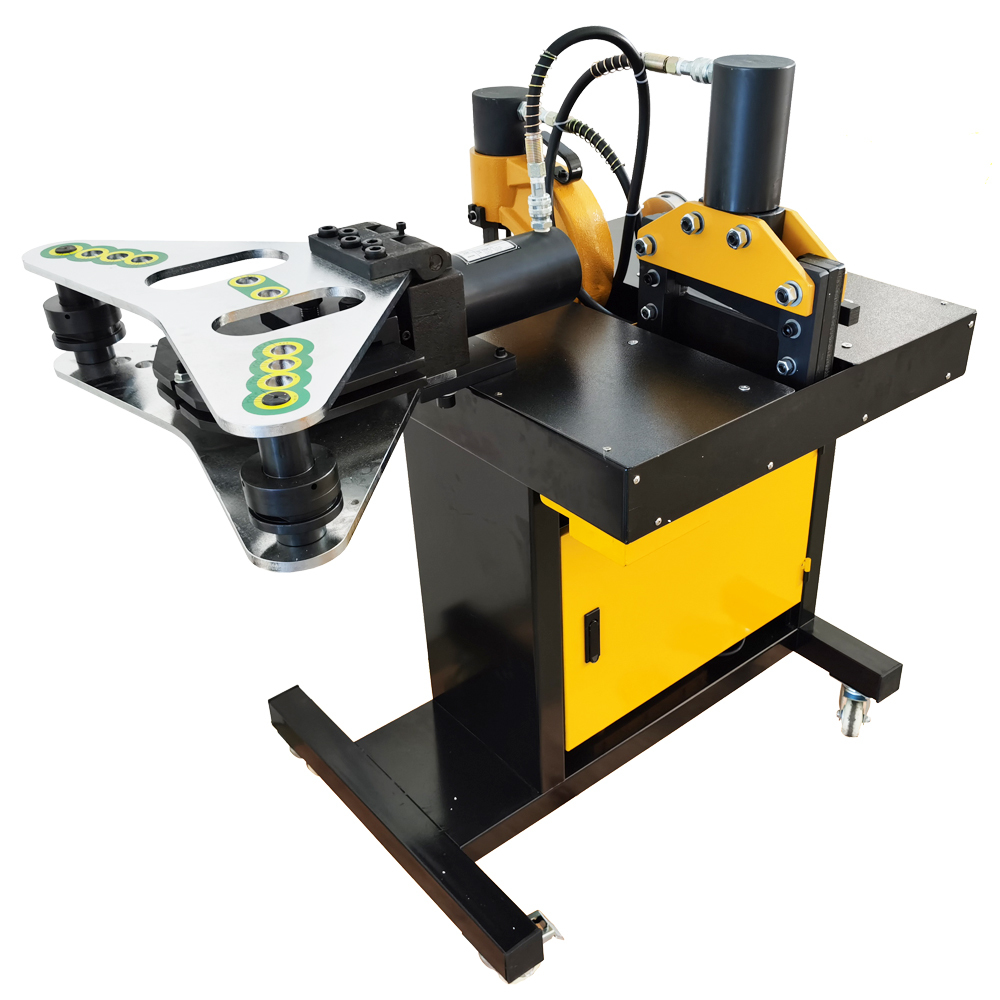

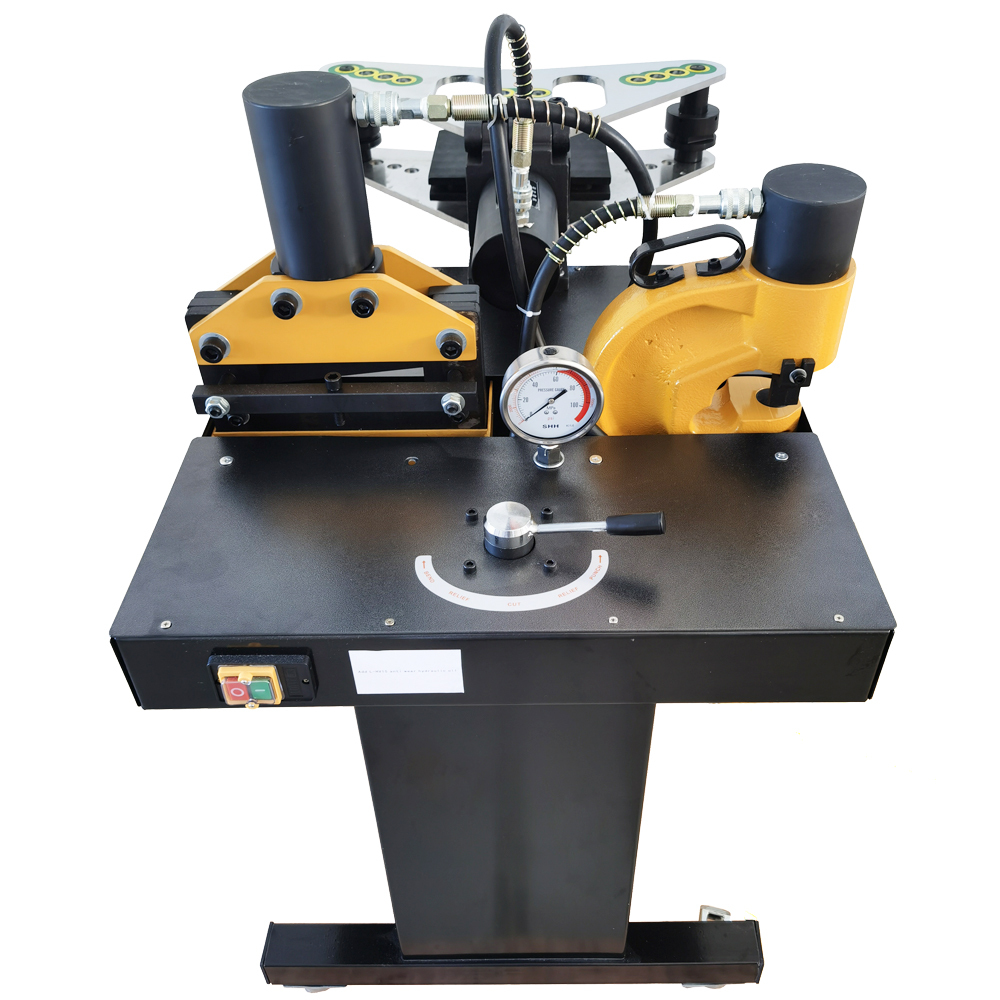

110V 4 in 1 Electric Hydraulic Busbar Processor Cutter/Hole Puncher/Flat Bending/Vertical Bending Product Overview Bus processing machine has shearing, punching, flat bending and vertical bending four processing units, the main function for processing different specifications of copper, aluminum bus, just use the corresponding processing unit, can be convenient, fast to copper, aluminum row shear, punching, bending and other different processing. It is an indispensable equipment for sheet metal processing, which can greatly improve production efficiency and is widely used in all walks of life. Product Parameters Voltage: 110V Power: 750W Output cutting force: 35ton Output punching force: 35ton Output flat/vertical bending force: 25ton Cutting max(Width*Thickness): 9.5"*0.5"(200mm*12mm) Punching max(Thickness): 0.5"(12mm) Flat/vertical bending width: 1.6"*2"*2.4"*3"*4"*5"(40,50,60,80,100,125mm) Flat/vertical bending thickness: 0.24"*0.3"*0.4"*0.5"(6,8,10,12.5mm) Flat/vertical bending busbar angle: 0-90 Throat depth of punching: 4.3"(110mm) Punching dies: 3/8", 5/8", 1/2", 3/4" Hydraulic pump pressure max: 700bar(10152psi) Tank capacity of hydraulic pump: 2.11gal(8L) Flow rate of hydraulic pump: 0.7L/min-5L/min Package size: 47.6"*32.7"*55.5"(121CM*83CM*141CM) Net weight/Gross weight: 497LBS(225.5KG)/605LBS(274.5KG) Product Features Advantages 1.Reversing Valve By adjusting the reversing valve, the three functions of punching, cutting, flat curved and vertical bending, can be achieved respectively, and the oil return can be carried out after using the electric pump. 2.Safety Switch One-button emergency stop protection switch design, can start and stop at any time, the switch is waterproof and dirt-resistant, easy to operate and safe. 3.Pressure Gauge Shockproof pressure gauge, reliable and durable, easy to repair and replace, high accuracy, can clearly observe the pressure changes of electric hydraulic pump. 4.Punching Tool Split punching tool, using high strength alloy steel C-type working head, suitable for low carbon steel, copper plate, aluminum plate and other metal punching; Accurate punching positioning, no burr. 5.Cutting Tool Split cutting tool, cutting force up to 35 tons, cutting thickness up to 12mm; After cutting, the incision is flat without deformation, and the positioning screw can be adjusted to prevent warping when cutting. 6.Flat Bending and Vertical Bending With two functions of flat bending and vertical bending, the strength can reach 25 tons; Give a variety of different sizes of molds, can be selected according to the needs of the appropriate mold, a wider range of application. 7.Hydraulic Pump Single-loop electric hydraulic pump, the maximum working pressure can reach 700bar, built-in safety valve for overload protection, two-stage hydraulic design, improve work efficiency. ? 8.Foot Switch There is a foot switch design at the bottom, which is easy to control and operate when in use. 9.Universal Wheel Equipped with four universal mobile casters, which can be locked and fixed, casters are made of wear-resistant rubber material, flexible and convenient to move. ? - The working table is polished by mirror, grinding and chrome plating, rust resistance, abrasion resistance and collision resistance. - No burr after punching; The cutting surface is smooth without indentation and burr, one bending molding, high precision. - Electric 700bar hydraulic system, can provide enough pressure; Low noise. - The 1000kg/cm oil-filled hydraulic gauge allows the operator to perform machining operations according to the pressure index, avoiding overload damage to equipment. - Pure copper core motor to ensure long-term stable operation of equipment; High quality, high sealing rubber pipeline to ensure that the loop will not leak hydraulic oil. Product Presentation Details ? Item Included(056867) Bus processing machine *1 Vertical bending dies *6 Mold head *1 Flat bent post *2 You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
