Bigtreetech Skr Mini E3 V2.0 TFT35 E3 V3.0 and 50 similar items

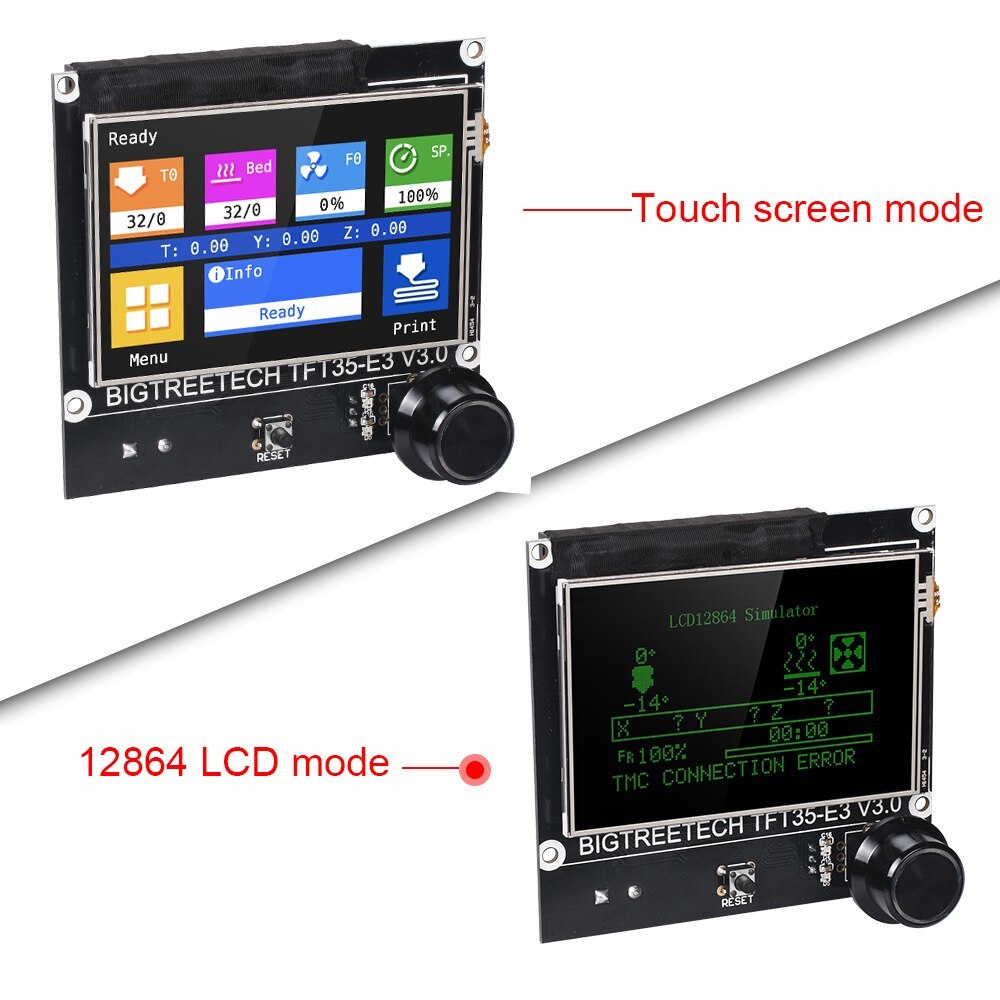

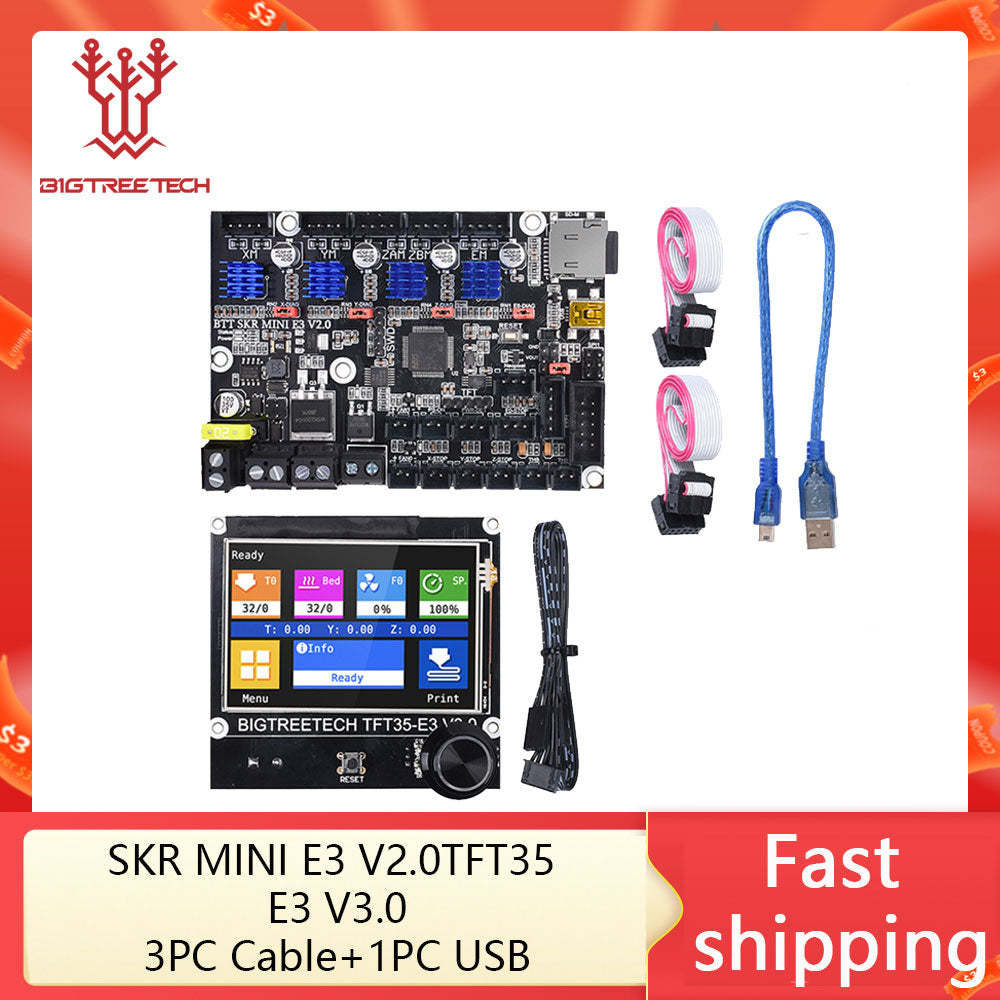

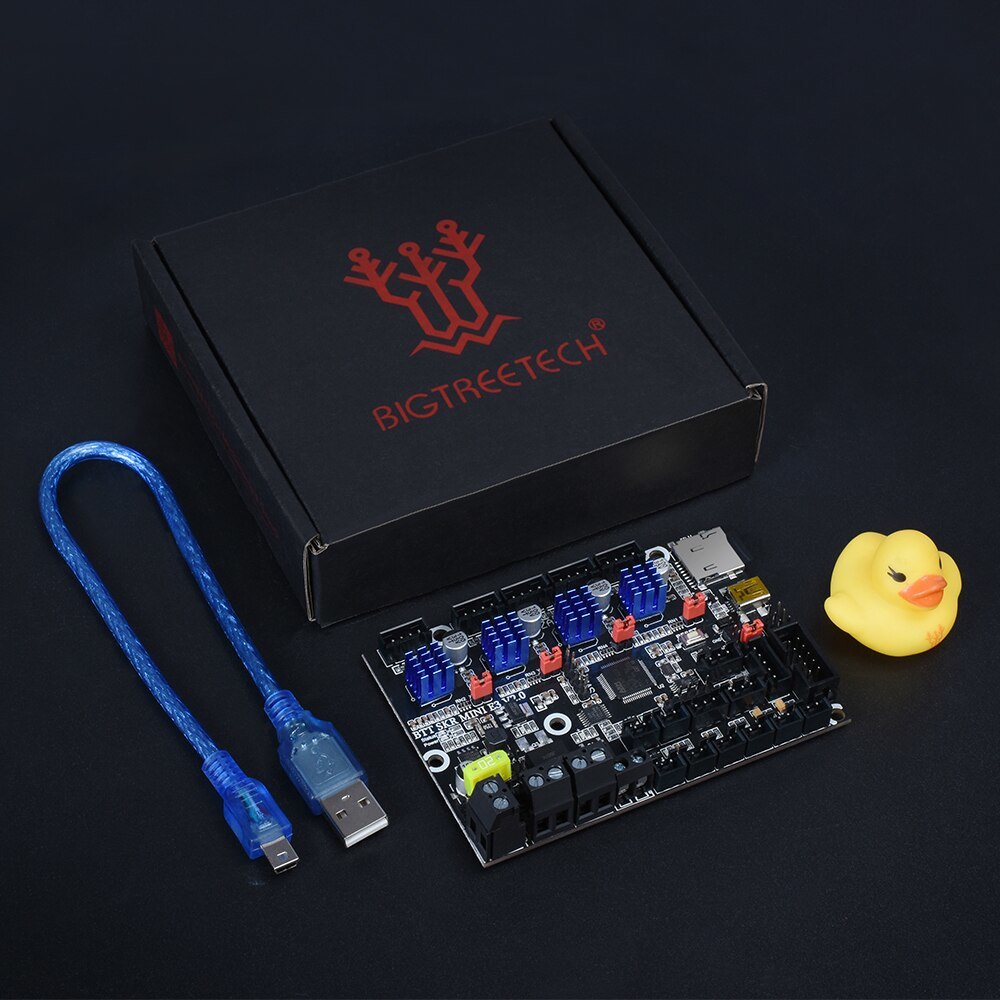

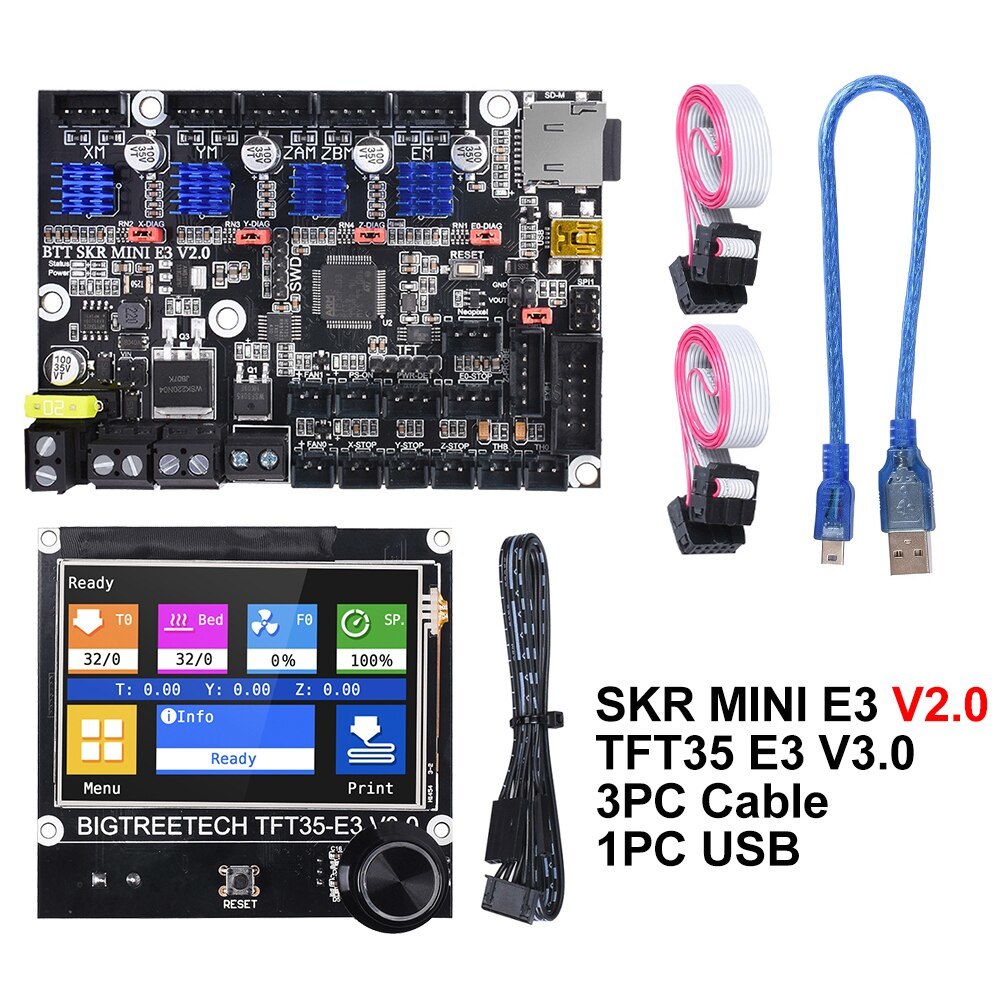

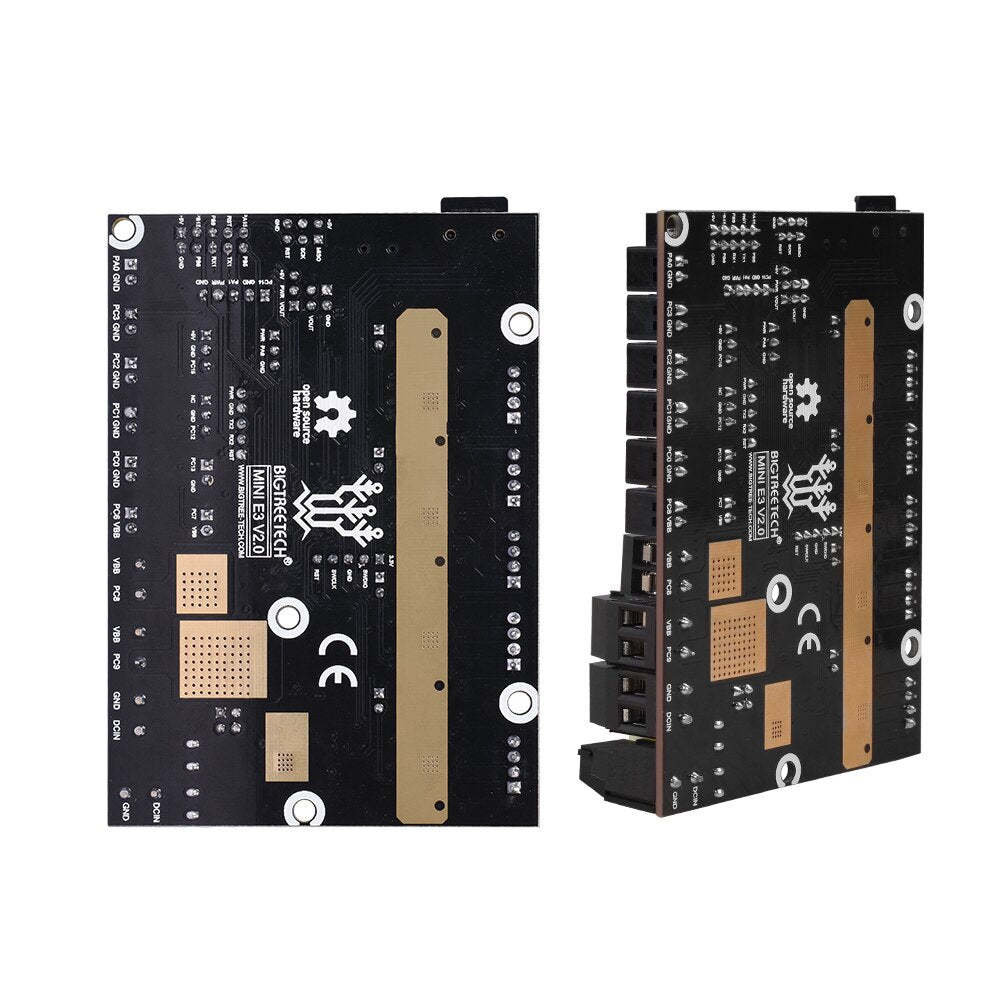

SPECIFICATIONS Brand Name: BIQU Origin: Mainland China Item Type: Motherboard Model Number: BIGTREETECH SKR MINI E3 V2.0 Product name: BTT SKR MINI E3 V2 Material: 4-layer PCB Master Chip: STM32F103RCT6 Power input: DC 12/24V Motor driver: TMC2209 UART mode Feature: EEPROM, Flament breaking detection... Motor Drive Interface: XM, YM, ZAM, ZBM, EM For: Ender 3, Ender 5, CR10 Printer Recommended software: Cura, Simplify3D, pronterface, Repetier-host, Makerware Stock: In stock MINI E3 V2.0 Kit: 1PC SKR MINI E3 V2.0 Board 1PC TFT35 E3 V3.0 Touch Screen MINI E3 V1.2 Kit: 1PC SKR MINI E3 V1.2 Board 1PC TFT35 E3 V3.0 Touch Screen Introduction: BTT SKR MINI E3 V2.0 is a customized motherboard for Ender3 printer launched by the 3D printing team of Shenzhen BIGTREE technology co., LTD., which can perfectly replace the motherboard of the original Ender3 printer. More detailed about SKR MINI E3 V2.0 you can visit this website: https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3/tree/master/hardware/BTT%20SKR%20MINI%20E3%20V2.0BIGTREETECHSKR MINI E3 V2.0 A motherboard specially tailored for Ender3 printers, perfectly replacing the original Ender3 printer motherboardDIMENSIONSADVANTAGES Main control chip ARM Cortex-M3 series STM32F103RCT6 RCT7 chip with 32-bit CPU 72MHZ Onboard EEPROM: 24C32Double Z-axis interface Add parallel double Z-axis interface Enhanced stability The UART communication port driven by TMC2209 uses hardwareUART port (One drag four),enhance stabilityCompatibility Compatible models increase, suitable for Ender3, Ender 3Pro Ender5,CR-10 Better protectionand safety design Increase the distance between the driving chip and thecomponents to avoid the trouble caused by the heat sinkSupport more function expansion Support BLtouch, filament detection, power-off resume, automaticshutdown (PS-ON),etcAdd 5V power supply 5V power supply with BLtouch, TFT andRGB interfaces is optional. Use BIGTREETECH DCDC5V V1.0module + 5V power supply Increase the board layer to4 layers lmprove heat dissipation signal function and anti-interferenceBETTER THERMAL PERFORMANCE Increase the heat dissipationarea of the back driver and strengthentheheat dissipation capacity HOT BED MOS TUBE The hot bed MOS tube adopts WSK220N04, lowRDS-ON heat dissipationarea, reduce heat generationPOWER CHIP Use MP1584EN power chip,support12-24V power input, maximumoutput current up to 2.5A Two CNC Fan interface Change an original FrequentFan to a CNC Fan?User-friendlyOnboard Sensorless homing function You can use this function by plugging in the jumpcap, easy and convenientPRODUCT DISPLAY
