SR3100 FCI Axial Schottky Rectifier Diode 100V 3A DO-201AD

Ready to Ship

Ask a Question

30-Day Return

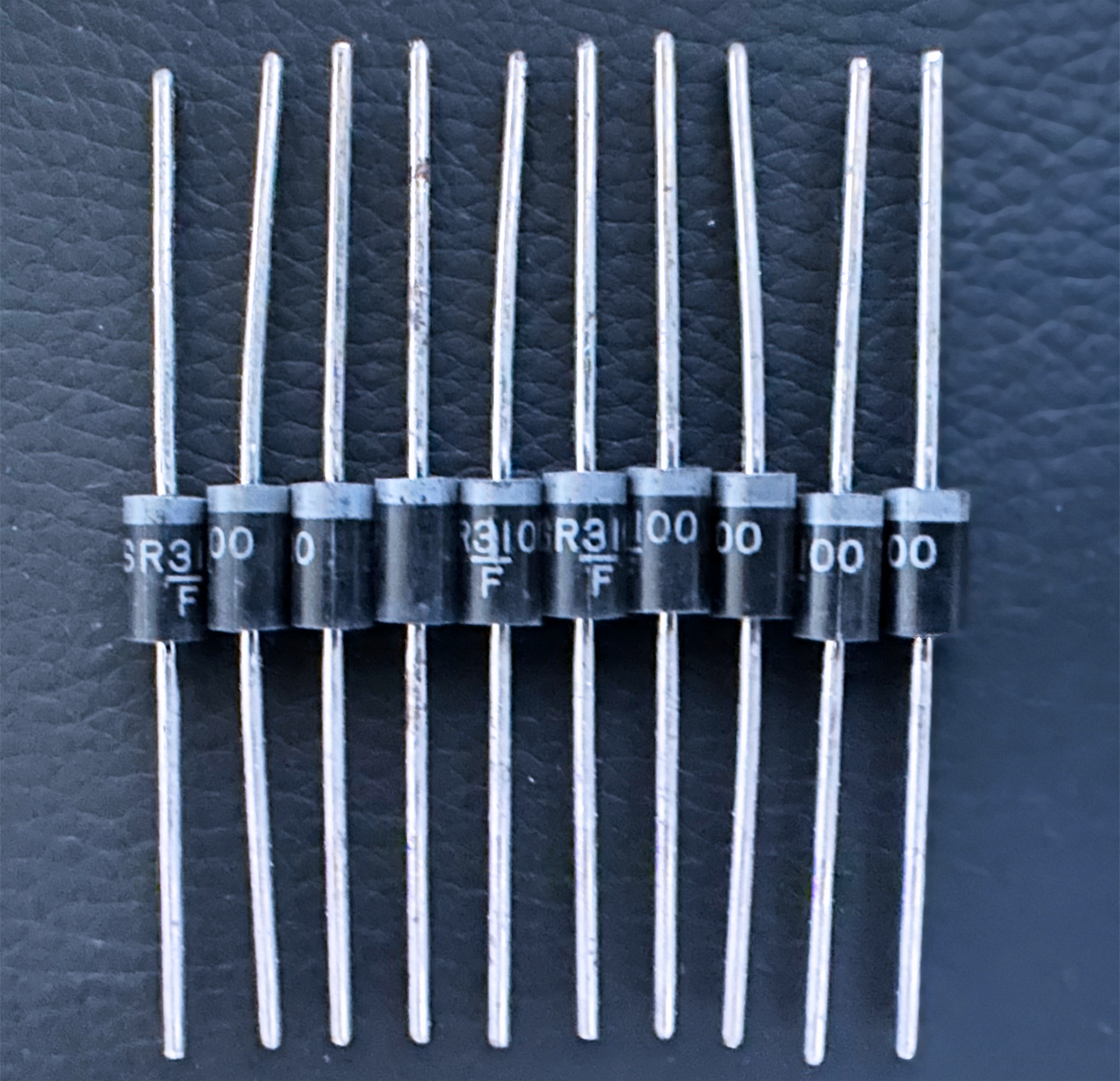

Pack of 10Pcs SR3100 FCI Axial Schottky Rectifier Diode 100V 3A DO-201AD

Specification
Diode Type RECTIFIER DIODE
Technology SCHOTTKY
JEDEC-95 Code DO-201AD
Terminal Position AXIAL

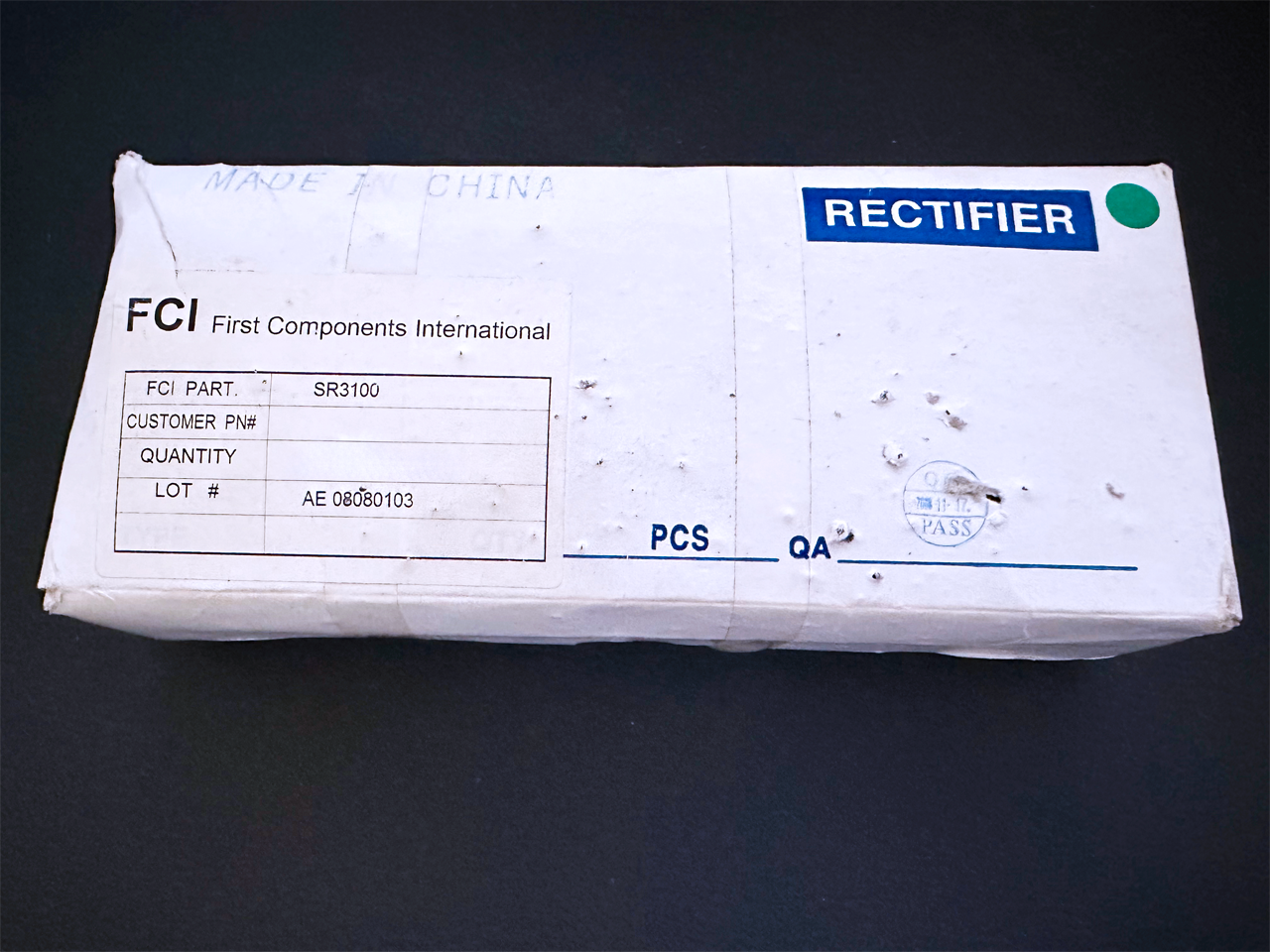

Manufacturer First Components International
Part Number SR3100
Maximum Recurrent Peak Reverse Voltage 100 Volts
Maximum RMS Voltage 70 Volts
Maximum DC Blocking Voltage 100 Volts
Maximum Average Forward Rectified Current 3.0 Amps
Peak Forward Surge Current 80 Amps
Maximum Instantaneous Forward Voltage at 3.0A 0.85 Volts
Maximum DC Reverse Current at TA=25°C 1.0 mA
Maximum DC Reverse Current at TA=100°C 30 mA
Typical Junction Capacitance 250 pF
Operating Temperature Range TJ -65 to +150 °C
Storage Temperature Range TSTG -65 to +150 °C
